UNION PVC Foam Core Applications in Wind Turbine Blades

Q: Why choose StruCell® PVC foam core for wind turbine blade manufacturing?

StruCell® structural PVC foam core offers exceptional benefits for wind turbine blade designs, including ultra-lightweight construction (densities from 45-250 kg/m³), high compressive strength (up to 6.2 MPa), and extreme temperature stability (-50°C to +80°C). As a DNV GL-certified rigid PVC foam board supplier, we ensure compliance with ISO 9001 and ASTM standards, making it ideal for demanding wind energy environments. Unlike heavier alternatives, our PVC foam core for wind turbine blades minimizes resin uptake during lamination, reducing overall weight by 20-30% and production costs. It's widely used in blade cores and nacelle components for renewable energy systems, providing durability, vibration damping, and saltwater resistance—perfect for offshore wind turbine blades.

Q: How does StruCell® PVC foam core integrate into wind turbine blade structures?

Integrating StruCell® PVC foam core into wind turbine blades involves sandwich construction, where the foam acts as the core between composite face sheets (e.g., glass or carbon fiber laminates). For instance, in the sandwich shell, a ~50mm PVC foam core layer is bonded between tri-axial composite sheets using vacuum auxiliary materials like peel ply and infusion tubes from our one-stop solutions. Our rigid PVC foam board supports customizable surface treatments (e.g., grooved, perforated, or scrim) for better resin flow and adhesion. With precision CNC machining and ±0.2mm thickness tolerance, it's easy to fit into components like shear webs or spar caps. As a structural PVC foam core supplier, we provide guidance on infusion and autoclave processes to ensure seamless integration in composite materials for wind energy.

Q: What are the technical specifications of StruCell® PVC foam core for wind turbine blades?

Our StruCell® PVC foam core for wind turbine blades is available in densities ranging from 45 kg/m³ (P45 for ultra-lightweight designs) to 250 kg/m³ (P250 for high-pressure applications), with customizable thicknesses from 1mm (thinnest nominal) to 70mm and ±0.2mm tolerance for precision. Key specs include <1.5% water absorption (ASTM D2842), thermal insulation (0.035-0.055 W/m·K), and UV stability, making it suitable for wind turbine blade components like shells and roots. As a DNV GL-certified rigid PVC foam board manufacturer, we offer surface treatments such as punched or grooved boards to enhance bonding in structural PVC foam core applications. Download our technical specs or request free A4 samples for your wind energy project.

Q: What advantages does StruCell® PVC foam core have over other core materials in wind turbine blades?

Compared to alternatives like balsa wood or PET foam, StruCell® structural PVC foam core excels in wind turbine blades with its closed-cell structure (>95%), offering superior moisture resistance (<1.5% absorption) and no degradation in marine-like offshore environments—unlike balsa, which can absorb water and rot. It provides a better strength-to-weight ratio than PU foam, with rigid stability for vibration-heavy wind energy applications. Our PVC foam core for wind turbine blades reduces resin uptake, lowering composite weight and costs by 20-30% versus EU/US brands. Backed by DNV GL and TÜV SÜD certifications, it's more durable and CNC-machinable, making it a preferred choice for high-performance composite materials for wind energy over flammable or less recyclable options like PE foam.

Q: How can I order or customize StruCell® PVC foam core for my wind turbine blade project?

Ordering StruCell® PVC foam core for wind turbine blades is simple with no MOQ at UNION COMPOSITES—we accept small batch and trial orders for prototyping. Contact our composite specialists via admin@unioncomposites.com or +86-18261198591 for material selection guidance, custom formulations (e.g., densities, thicknesses, or surface treatments like hyperbolic boards), and CNC cutting services. We offer free A4 samples, fast delivery (5-7 days for small orders, 15-20 days for full containers), and 24/7 support. As a global rigid PVC foam board manufacturer, we provide end-to-end tracking via our ERP system and AEO-accredited logistics for 30+ countries. Request a custom quote today to integrate our structural PVC foam core into your wind energy solutions.

As a leading rigid PVC foam core manufacturer and DNV GL-certified supplier, UNION COMPOSITES specializes in StruCell® structural PVC foam core solutions for the wind energy sector. Our high-performance PVC foam cores, available in densities from 45 kg/m³ (P45) to 250 kg/m³ (P250), provide exceptional strength-to-weight ratios, ultra-low resin absorption (<1.5%), and superior fatigue resistance. These features make StruCell® ideal for wind turbine blade construction, helping manufacturers achieve lightweight durability, reduced production costs, and compliance with international standards like ISO 9001 and ASTM.

Wind Turbine Blades

PVC FOAM CORE - StruCell® P60/P80

Wind Turbine Blade Sandwich Shell Cores

Wind Turbine Blades

PVC FOAM CORE - StruCell® P60/P80

Wind Turbine Blade Sandwich Shell Cores

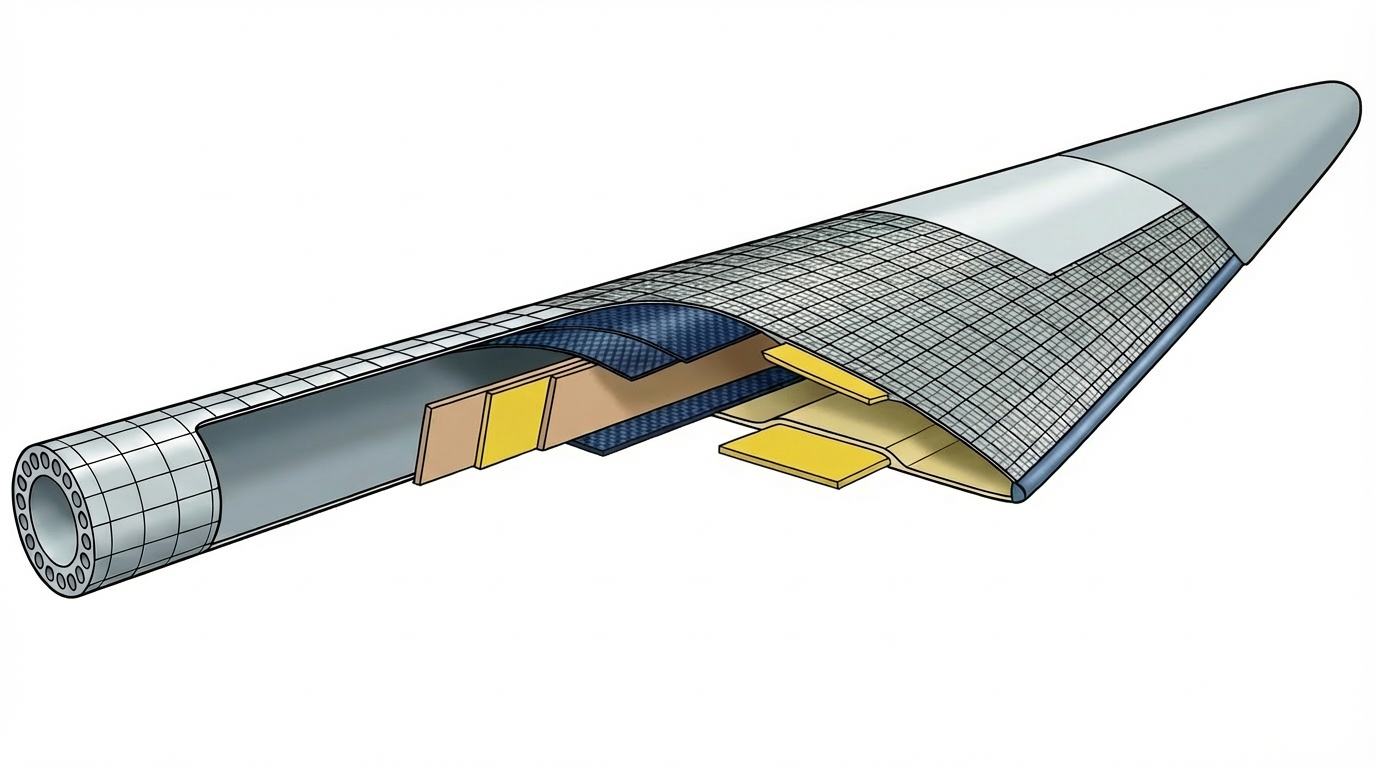

PVC Foam Core Applications in Wind Turbine Blade Structures

Key Integration Points for Lightweight, High-Performance Cores.

In wind energy applications, our PVC foam core for wind turbine blades is integrated into sandwich structures to enhance aerodynamic efficiency and structural integrity. Whether for onshore or offshore turbines, StruCell® reduces blade weight while withstanding extreme loads, contributing to longer service life and optimized renewable energy production. Explore the key blade components below where our structural PVC foam excels, and see how it can elevate your wind blade designs.

CONTACT UNION COMPOSITES

Sandwich Skins (Upper and Lower)

Rigid PVC foam core used in the sandwich skins to provide lightweight core material between composite face sheets, optimizing bending strength and impact resistance for the upper and lower blade surfaces.

Shear Web

Structural PVC foam core incorporated into sandwich-designed shear webs to increase shear strength and torsional stability while minimizing overall blade mass in the internal I-beam structure.

Spar Caps (Upper and Lower)

PVC foam core applied in hybrid or sandwich spar cap designs for localized weight reduction and enhanced compressive strength, supporting the primary bending loads in the blade's main spar.

Leading Edge

Lightweight PVC foam core embedded in the leading edge sandwich structure to improve erosion resistance and aerodynamic efficiency, while maintaining structural integrity under high wind loads.

Trailing Edge

PVC foam core utilized in the trailing edge sandwich panels for added flexibility and vibration damping, reducing noise and fatigue in the blade's rear section.

Sandwich Skins (Upper and Lower)

Shear Web

Structural PVC foam core incorporated into sandwich-designed shear webs to increase shear strength and torsional stability while minimizing overall blade mass in the internal I-beam structure.

Spar Caps (Upper and Lower)

PVC foam core applied in hybrid or sandwich spar cap designs for localized weight reduction and enhanced compressive strength, supporting the primary bending loads in the blade's main spar.

Leading Edge

Lightweight PVC foam core embedded in the leading edge sandwich structure to improve erosion resistance and aerodynamic efficiency, while maintaining structural integrity under high wind loads.

Trailing Edge

PVC foam core utilized in the trailing edge sandwich panels for added flexibility and vibration damping, reducing noise and fatigue in the blade's rear section.

Sandwich Shell

More+
The sandwich shell forms the outer aerodynamic structure of the wind turbine blade, requiring lightweight yet rigid materials to handle dynamic wind loads. StruCell® PVC foam core for wind turbine blades serves as the intermediate layer in this sandwich design, providing enhanced stiffness and reduced weight. Benefits include improved fatigue resistance and low resin uptake during lamination, ideal for large-scale blades.
- Recommended Products: StruCell® P60 pvc foam core for balanced density and strength.
- Key Advantages: Up to 20-30% weight reduction; DNV GL-certified for offshore durability.

Sandwich Skins (Upper and Lower)

More+
Upper and lower sandwich skins are critical for the blade's surface integrity, where sandwich core for blade shells like StruCell® provides lightweight reinforcement between composite face sheets. This application optimizes bending strength and impact resistance, ensuring the blade withstands harsh environmental conditions.
- Recommended Products: StruCell® P45 pvc foam core for ultra-lightweight designs or higher compressive needs.
- Key Advantages: Excellent thermal insulation (0.035-0.055 W/m·K) and <1.5% water absorption for long-term performance.

Shear Web

More+
Shear webs act as internal vertical supports in the blade's I-beam structure, transferring shear forces. Incorporating StruCell® structural PVC foam core in sandwich-designed shear webs increases torsional stability and minimizes mass, making it suitable for high-vibration wind energy environments.
- Recommended Products: StruCell® P80 pvc foam core for superior shear strength and CNC machining compatibility.
- Key Advantages: Rigid stability with microcellular structure for vibration damping; compliant with ASTM D2842 standards.

Spar Caps (Upper and Lower)

More+
Spar caps are the primary load-bearing elements in the blade's main spar, where hybrid or sandwich designs benefit from PVC foam core for wind turbine blades. StruCell® provides localized weight reduction and enhanced compressive strength, supporting bending loads in demanding wind applications.
- Recommended Products: StruCell® P100 pvc foam core for high-density, load-bearing requirements.
- Key Advantages: Up to 6.2 MPa load-bearing capability; reduces overall composite weight by minimizing resin absorption.

Leading Edge

More+
The leading edge faces direct wind impact, requiring erosion-resistant materials. StruCell® structural PVC foam in wind energy embedded in the leading edge sandwich structure improves aerodynamic efficiency and structural integrity under high loads.
- Recommended Products: StruCell® P60 pvc foam core for flexibility or added toughness.
- Key Advantages: UV stability and saltwater resistance, ideal for offshore wind turbine blades.

Trailing Edge

More+
Trailing edges demand flexibility and vibration damping. Our sandwich core for blade shells in trailing edge panels reduces noise and fatigue, enhancing blade performance in turbulent conditions.
- Recommended Products: StruCell® P45 pvc foam core for lightweight damping or P80 for structural support.
- Key Advantages: Shock-absorbent properties with closed-cell structure (>95%) for extended durability.

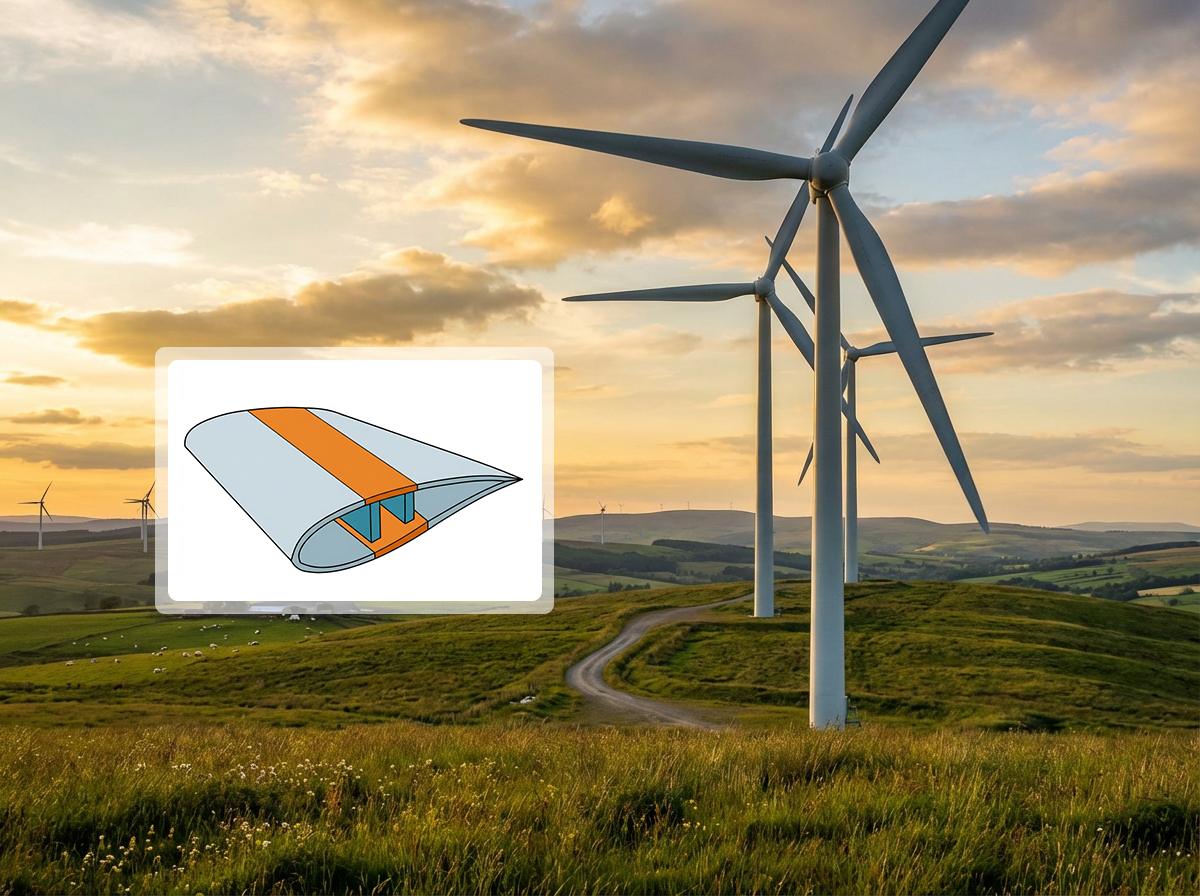

PVC Foam Core and Other Composite Materials in Wind Turbine Blades

Key Applications of UNION Composite Materials by Wind Turbine Blade Component

CONTACT UNION COMPOSITES

Outer Gelcoat

Provides surface protection and UV resistance.

Outer Multi-Axial Composite

Acts as the external face sheet for strength and impact resistance.

Sandwich Core

Serves as the thick intermediate layer for lightweight stiffness and insulation.

Inner Multi-Axial Composite

Provides internal reinforcement and bonding to the core.

Shear Web

Shear webs serve as internal vertical supports, transferring shear forces and requiring torsional stability.

Spar Caps (Upper and Lower)

Spar caps are primary load-bearing elements, benefiting from high-strength hybrids for bending loads.

Sandwich Skins (Upper and Lower)

Upper and lower skins provide surface integrity, optimized with cores and fibers for bending strength and impact resistance.

Sandwich Shell

The sandwich shell forms the outer aerodynamic structure, requiring lightweight cores and reinforcements for dynamic load handling. Its layered design includes a protective outer gelcoat, multi-axial composite face sheets, and a thick core for rigidity.

Leading Edge

The leading edge withstands direct wind impact, needing erosion-resistant materials for aerodynamic efficiency.

Trailing Edge

Trailing edges require flexibility and damping to reduce noise and fatigue in turbulent conditions.

Outer Gelcoat

Provides surface protection and UV resistance.

Outer Multi-Axial Composite

Acts as the external face sheet for strength and impact resistance.

Sandwich Core

Serves as the thick intermediate layer for lightweight stiffness and insulation.

Inner Multi-Axial Composite

Provides internal reinforcement and bonding to the core.

Shear Web

Shear webs serve as internal vertical supports, transferring shear forces and requiring torsional stability.

Spar Caps (Upper and Lower)

Spar caps are primary load-bearing elements, benefiting from high-strength hybrids for bending loads.

Sandwich Skins (Upper and Lower)

Upper and lower skins provide surface integrity, optimized with cores and fibers for bending strength and impact resistance.

Sandwich Shell

Leading Edge

The leading edge withstands direct wind impact, needing erosion-resistant materials for aerodynamic efficiency.

Trailing Edge

Trailing edges require flexibility and damping to reduce noise and fatigue in turbulent conditions.

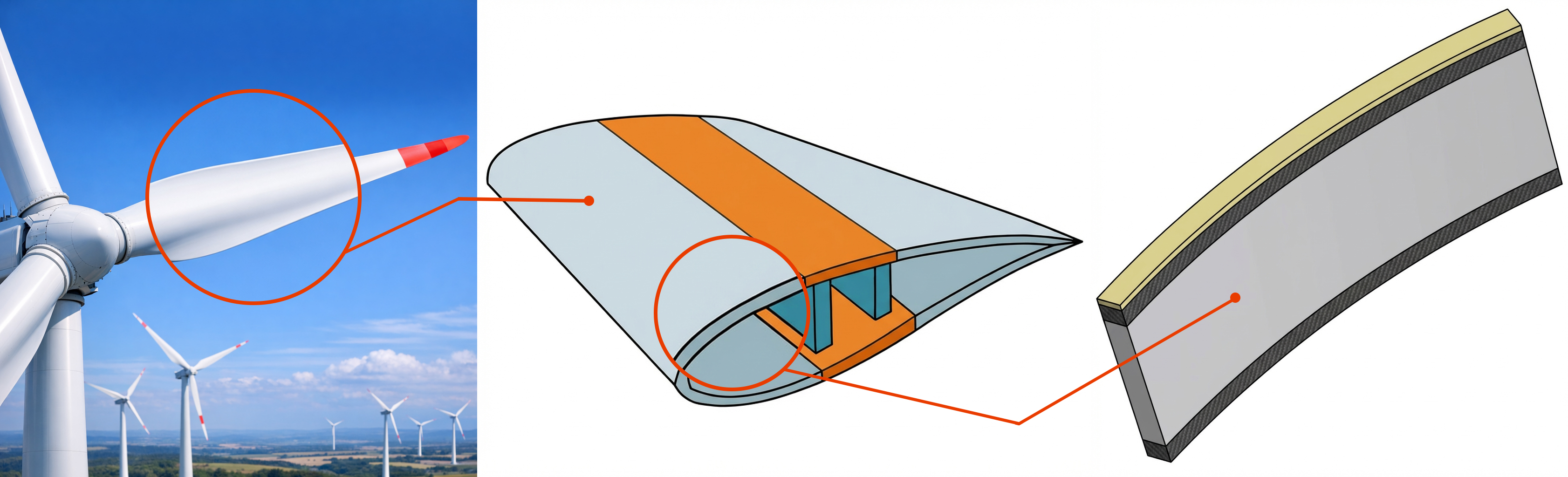

Detailed Layered Structure of Sandwich Shell in Wind Turbine Blades

The sandwich shell forms the outer aerodynamic structure of wind turbine blades, requiring lightweight cores and reinforcements for dynamic load handling. Its layered design includes a protective outer gelcoat, multi-axial composite face sheets, and a thick core for rigidity.

Overall Shell Advantages: Up to 20-30% weight reduction with DNV GL-certified materials; enhances fatigue resistance and low resin uptake during lamination, ideal for large-scale wind turbine blades.

Layer 1: Outer Gelcoat

More+
Layer 1: Outer Gelcoat – Provides surface protection and UV resistance in wind turbine blades.
- Applicable Products: FRP Sandwich Core (for gelcoat-compatible resins); Vacuum Auxiliary Materials (e.g., release films for application).
- Recommended Specifics: Gelcoat resins integrated with FRP panels for smooth, durable finishes in wind turbine blade manufacturing.
- Key Advantages: Enhances weather resistance and aesthetics; easy application with low-waste vacuum processes for wind turbine blades.

Layer 2: Outer Multi-Axial Composite

More+
Layer 2: Outer Multi-Axial Composite – Acts as the external face sheet for strength and impact resistance in wind turbine blades.
- Applicable Products: Glass Fiber Products (e.g., tri-axial fabrics); Carbon Fiber Fabrics (for high-performance variants).
- Recommended Specifics: E-glass tri-axial woven fabrics or carbon fiber tri-axial prepregs for wind turbine blade structures.
- Key Advantages: Multi-directional strength (0°/+45°/-45°) for superior load distribution; cost-effective with glass or high-stiffness with carbon in wind turbine blades.

Layer 3: Sandwich Core

More+
Layer 3: Sandwich Core – Serves as the thick intermediate layer for lightweight stiffness and insulation in wind turbine blades.
- Applicable Products: StruCell® PVC Foam Core (primary); PP Honeycomb & HolyPan Panels (for honeycomb reinforcement).
- Recommended Specifics: StruCell® P60 or P80 PVC foam core, customizable to 50mm thickness with grooved surfaces for wind turbine blade components.
- Key Advantages: Ultra-low resin absorption (<1.5%) and high compressive strength; reduces weight by 20-30% while maintaining structural integrity in wind turbine blades.

Layer 4: Inner Multi-Axial Composite

More+
Layer 4: Inner Multi-Axial Composite – Provides internal reinforcement and bonding to the core in wind turbine blades.
- Applicable Products: Glass Fiber Products (e.g., tri-axial mats); Carbon Fiber Fabrics (for enhanced tensile properties).
- Recommended Specifics: Tri-axial glass fiber rovings or carbon fiber laminates for vacuum infusion in wind turbine blade designs.
- Key Advantages: Excellent adhesion to cores; improves fatigue resistance and overall blade durability in demanding wind turbine blades.

Applications in Other Key Wind Turbine Blade Components

These internal and edge components of wind turbine blades benefit from our composite materials for load-bearing, stability, and efficiency.

Sandwich Skins (Upper and Lower)

More+
Upper and lower skins provide surface integrity in wind turbine blades, optimized with cores and fibers for bending strength and impact resistance.
- Applicable Products: StruCell® PVC Foam Core (for lightweight reinforcement); Carbon Fiber Products (for high-tensile laminates); Glass Fiber Products (for cost-effective face sheets).
- Recommended Specifics: StruCell® P45 PVC foam core with high-modulus carbon fiber prepregs for wind turbine blade manufacturing.
- Key Advantages: Excellent thermal insulation and <1.5% water absorption; improves environmental resistance in harsh conditions for wind turbine blades.

Shear Web

More+
Shear webs serve as internal vertical supports in wind turbine blades, transferring shear forces and requiring torsional stability.
- Applicable Products: StruCell® PVC Foam Core (in sandwich designs); Carbon Fiber Products (for reinforcement); PU Foam Core (for vibration damping); Vacuum Auxiliary Materials (for lamination processes).
- Recommended Specifics: StruCell® P80 or P130 PVC foam with carbon fiber fabrics and peel ply for infusion in wind turbine blade structures.
- Key Advantages: Increases stability with microcellular structure; compliant with ASTM D2842, ideal for high-vibration environments in wind turbine blades.

Spar Caps (Upper and Lower)

More+
Spar caps are primary load-bearing elements in wind turbine blades, benefiting from high-strength hybrids for bending loads.
- Applicable Products: StruCell® PVC Foam Core (for weight reduction); Carbon Fiber Products (for tensile strength); Glass Fiber Products (for laminates); FRP Sandwich Core (for composite integration).
- Recommended Specifics: StruCell® P100 or P200 PVC foam with high-modulus carbon fiber rovings for wind turbine blade components.
- Key Advantages: Up to 6.2 MPa load-bearing capability; minimizes resin uptake, supporting demanding wind turbine blades.

Leading Edge

More+
The leading edge withstands direct wind impact in wind turbine blades, needing erosion-resistant materials for aerodynamic efficiency.
- Applicable Products: StruCell® PVC Foam Core (in sandwich structures); Glass Fiber Products (for protective laminates); Vacuum Auxiliary Materials (for resin infusion).
- Recommended Specifics: StruCell® P60 PVC foam core with E-glass fiber mats and flow mesh for wind turbine blade designs.
- Key Advantages: UV stability and saltwater resistance; enhances integrity under high loads, perfect for offshore wind turbine blades.

Trailing Edge

More+
Trailing edges require flexibility and damping in wind turbine blades to reduce noise and fatigue in turbulent conditions.
- Applicable Products: StruCell® PVC Foam Core (for panels); PP Honeycomb & HolyPan Panels (for lightweight support).
- Recommended Specifics: StruCell® P45 PVC foam core with closed-cell PU foam boards for wind turbine blade manufacturing.
- Key Advantages: Shock-absorbent with >95% closed-cell structure; extends durability and reduces operational noise in wind turbine blades.

Why Choose UNION COMPOSITES for Your Wind Turbine Blade Projects?

At UNION COMPOSITES, we stand out as a trusted partner in wind turbine blade manufacturing with a complete and efficient supply chain that ensures timely delivery and high-quality materials. We provide nearly all composite materials needed for wind turbine blades, including PVC foam core, carbon fiber, glass fiber, PET foam, PU foam, PP honeycomb panels, FRP sandwich cores, and vacuum auxiliary materials—offering true one-stop integration to streamline your production process and reduce complexity.

As a direct manufacturer with 15+ years of expertise, we help clients lower costs by 20-30% through optimized material sourcing, custom CNC machining, and no-MOQ flexibility, eliminating intermediaries and waste. All our products undergo rigorous industry certifications, including DNV GL, ISO 9001, ASTM, and TÜV SÜD standards, guaranteeing reliability, safety, and performance in demanding wind turbine blade applications.

Whether you're developing onshore or offshore wind turbine blades, our integrated solutions deliver superior results with free samples, 24/7 technical support, and fast delivery (5-7 days for small orders). Partner with us to elevate your wind turbine blade designs today.

Contact

Products
- Service
- Quality
- Cost

PVC Foam Core Board for Wind Turbine Blade Optimization

PVC Foam Core (60kg/m³- 300kg/m³)
Surface treatment: punched board, double-sided grooved and punched board, scrim board, hyperbolic board

PET Foam (80kg/m³-100kg/m³)

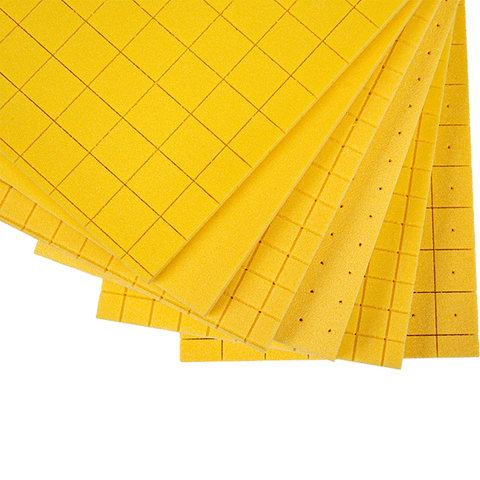

UNION PVC FOAM - P60

Model: P-60

Brief:
UNION PVC Foam-P60 is a durable closed-cell PVC foam core board manufactured by UNION COMPOSITES, a leading PVC Foam Core Board Sheet manufacturer and supplier in China. This high-performance material is specifically engineered for wind energy applications (blades & nacelles), boatbuilding, and RV manufacturing, offering exceptional strength-to-weight ratio and weather resistance.
This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

More >>

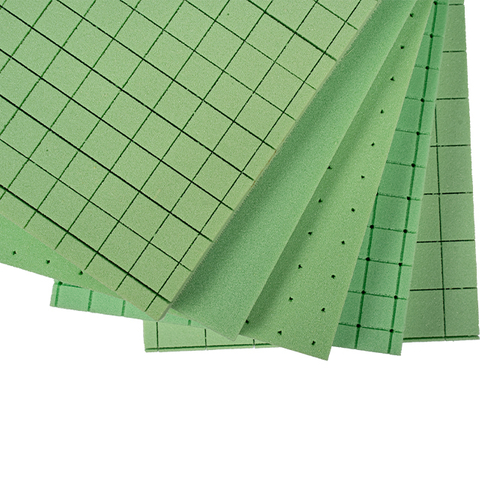

UNION P80 PVC FOAM BOARD

Model: P-80

Brief:
UNION PVC Foam Board P80 is a premium closed-cell, cross-linked polymer foam core board, manufactured by China's leading PVC Foam Core Board Sheet manufacturer and supplier - UNION COMPOSITES. Specially engineered for marine applications and sports equipment, this high-performance material delivers exceptional strength-to-weight ratio and durability.
This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

More >>

Ready to explore how UNION PVC Foam can elevate your wind energy projects?

GET IN TOUCH NOW

FAQ: StruCell® PVC Foam Core for Wind Turbine Blades

What is PVC foam core and how is it used in wind turbine blades?

PVC foam core is a lightweight, closed-cell structural material made from polyvinyl chloride (PVC) resin, featuring a microcellular structure with >95% closed-cell rate for superior strength-to-weight ratios. In wind turbine blades, StruCell® PVC foam core serves as the intermediate layer in sandwich structures, such as blade shells, skins, shear webs, and spar caps. As a leading rigid PVC foam board manufacturer, UNION COMPOSITES produces structural PVC foam core that enhances aerodynamic efficiency, reduces blade weight, and withstands extreme loads in onshore and offshore wind energy applications. For example, our PVC foam core for wind turbine blades is integrated via vacuum infusion or lamination processes, providing fatigue resistance and low resin absorption (<1.5%) to optimize composite materials for wind energy.
Why choose StruCell® PVC foam core for wind turbine blade manufacturing?

StruCell® structural PVC foam core offers exceptional benefits for wind turbine blade designs, including ultra-lightweight construction (densities from 45-250 kg/m³), high compressive strength (up to 6.2 MPa), and extreme temperature stability (-50°C to +80°C). As a DNV GL-certified rigid PVC foam board supplier, we ensure compliance with ISO 9001 and ASTM standards, making it ideal for demanding wind energy environments. Unlike heavier alternatives, our PVC foam core for wind turbine blades minimizes resin uptake during lamination, reducing overall weight by 20-30% and production costs. It's widely used in blade cores and nacelle components for renewable energy systems, providing durability, vibration damping, and saltwater resistance—perfect for offshore wind turbine blades.
How does StruCell® PVC foam core integrate into wind turbine blade structures?

Integrating StruCell® PVC foam core into wind turbine blades involves sandwich construction, where the foam acts as the core between composite face sheets (e.g., glass or carbon fiber laminates). For instance, in the sandwich shell, a ~50mm PVC foam core layer is bonded between tri-axial composite sheets using vacuum auxiliary materials like peel ply and infusion tubes from our one-stop solutions. Our rigid PVC foam board supports customizable surface treatments (e.g., grooved, perforated, or scrim) for better resin flow and adhesion. With precision CNC machining and ±0.2mm thickness tolerance, it's easy to fit into components like shear webs or spar caps. As a structural PVC foam core supplier, we provide guidance on infusion and autoclave processes to ensure seamless integration in composite materials for wind energy.
What are the technical specifications of StruCell® PVC foam core for wind turbine blades?

Our StruCell® PVC foam core for wind turbine blades is available in densities ranging from 45 kg/m³ (P45 for ultra-lightweight designs) to 250 kg/m³ (P250 for high-pressure applications), with customizable thicknesses from 1mm (thinnest nominal) to 70mm and ±0.2mm tolerance for precision. Key specs include <1.5% water absorption (ASTM D2842), thermal insulation (0.035-0.055 W/m·K), and UV stability, making it suitable for wind turbine blade components like shells and roots. As a DNV GL-certified rigid PVC foam board manufacturer, we offer surface treatments such as punched or grooved boards to enhance bonding in structural PVC foam core applications. Download our technical specs or request free A4 samples for your wind energy project.
What advantages does StruCell® PVC foam core have over other core materials in wind turbine blades?

Compared to alternatives like balsa wood or PET foam, StruCell® structural PVC foam core excels in wind turbine blades with its closed-cell structure (>95%), offering superior moisture resistance (<1.5% absorption) and no degradation in marine-like offshore environments—unlike balsa, which can absorb water and rot. It provides a better strength-to-weight ratio than PU foam, with rigid stability for vibration-heavy wind energy applications. Our PVC foam core for wind turbine blades reduces resin uptake, lowering composite weight and costs by 20-30% versus EU/US brands. Backed by DNV GL and TÜV SÜD certifications, it's more durable and CNC-machinable, making it a preferred choice for high-performance composite materials for wind energy over flammable or less recyclable options like PE foam.
How can I order or customize StruCell® PVC foam core for my wind turbine blade project?

Ordering StruCell® PVC foam core for wind turbine blades is simple with no MOQ at UNION COMPOSITES—we accept small batch and trial orders for prototyping. Contact our composite specialists via admin@unioncomposites.com or +86-18261198591 for material selection guidance, custom formulations (e.g., densities, thicknesses, or surface treatments like hyperbolic boards), and CNC cutting services. We offer free A4 samples, fast delivery (5-7 days for small orders, 15-20 days for full containers), and 24/7 support. As a global rigid PVC foam board manufacturer, we provide end-to-end tracking via our ERP system and AEO-accredited logistics for 30+ countries. Request a custom quote today to integrate our structural PVC foam core into your wind energy solutions.

UNION PVC Foam Core Applications in Wind Turbine Blades

PVC Foam Core Applications in Wind Turbine Blade Structures

PVC Foam Core and Other Composite Materials in Wind Turbine Blades

Detailed Layered Structure of Sandwich Shell in Wind Turbine Blades

Applications in Other Key Wind Turbine Blade Components

Why Choose UNION COMPOSITES for Your Wind Turbine Blade Projects?

PVC Foam Core Board for Wind Turbine Blade Optimization

Ready to explore how UNION PVC Foam can elevate your wind energy projects?

FAQ: StruCell® PVC Foam Core for Wind Turbine Blades

GET IN TOUCH

QUICK LINKS

MAIN PRODUCTS
