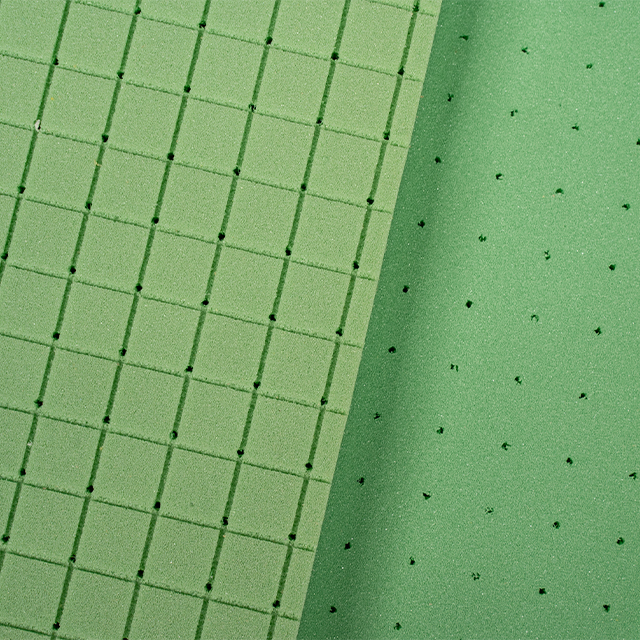

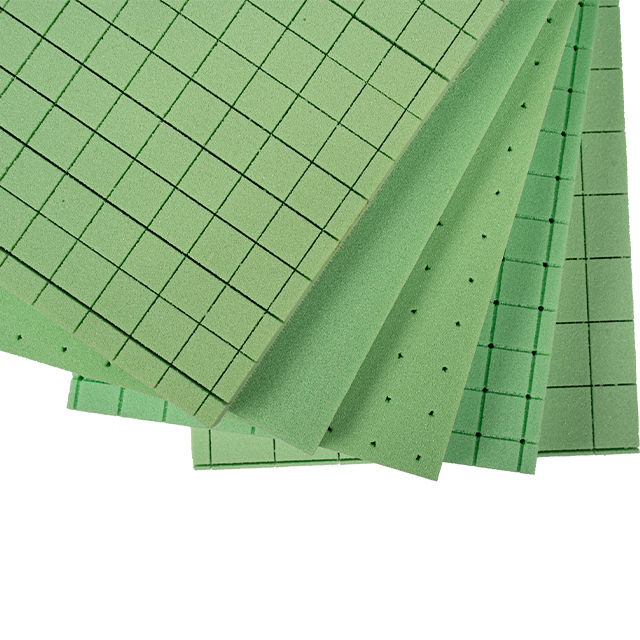

UNION P80 PVC Foam with grooves and perforations - Professional surface technology UNION P80 PVC Foam with grooves and perforations - Professional surface technology
Perforated UNION P80 PVC Foam Board - Lightweight core material with ventilation holes Perforated UNION P80 PVC Foam Board - Lightweight core material with ventilation holes

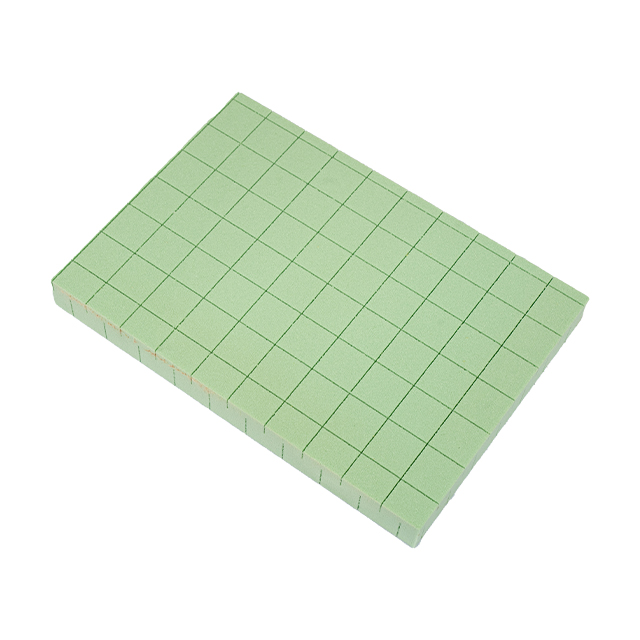

UNION P80 PVC Foam Core Board with precision grooves - Enhanced bonding surface for composite materials UNION P80 PVC Foam Core Board with precision grooves - Enhanced bonding surface for composite materials
Custom contoured UNION P80 PVC Foam Sheet - Shaped for complex composite structures Custom contoured UNION P80 PVC Foam Sheet - Shaped for complex composite structures
Fiberglass scrim reinforced P80 PVC Foam - UNION's high-strength composite core material Fiberglass scrim reinforced P80 PVC Foam - UNION's high-strength composite core material
Hyperbolic-shaped UNION P80 PVC Foam Sheet for curved composite applications Hyperbolic-shaped UNION P80 PVC Foam Sheet for curved composite applications

loading

UNION P80 PVC FOAM BOARD

UNION PVC Foam Board P80 is a premium closed-cell, cross-linked polymer foam core board, manufactured by China's leading PVC Foam Core Board Sheet manufacturer and supplier - UNION COMPOSITES. Specially engineered for marine applications and sports equipment, this high-performance material delivers exceptional strength-to-weight ratio and durability.
This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

  • P-80

  • UNION

Availability:
Quantity:
Inquire Add to Basket

Rigid PVC Foam Core PVC Foam Board Closed cell PVC Foam CNC Custom PVC Foam PVC Foam Core PVC Foam Sheet Marine Grade PVC Foam PVC Foam Manufacturer PVC Foam Marine Structural Foam Core
Product Description
Specifications
Product Certification
Production & Delivery
FAQS

UNION P80 PVC Foam Core Board: Advanced Composite Material Solutions


As a trusted PVC Foam Core Board Sheet manufacturer and supplier, UNION COMPOSITES produces P80 PVC foam through a specialized process combining PVC resin with additives and blowing agents. This creates a lightweight yet robust foam structure with unique advantages:


Key Features & Benefits


✔ Superior Physical Properties

  • Closed-cell, cross-linked structure for enhanced durability

  • Exceptional strength-to-weight ratio (Density: 80kg/m³)

  • Resistant to impact, compression, bending, and UV radiation


✔ Multi-Functional Performance

  • Excellent thermal insulation for energy efficiency

  • Superior sound insulation for noise reduction

  • Chemical and weather corrosion resistance


✔ Wide Industry Applications

  • Marine: Boatbuilding, yacht components

  • Sports: Kayaking equipment

  • Industrial: Railway, turbine housings, nacelles


Technical Advantages

  • Consistent cross-section for uniform performance

  • Excellent bonding with resins and laminates

  • ISO 9001/14001 certified production


Why Choose UNION P80?

10+ years expertise in composite materials manufacturing with strict quality control ensures batch-to-batch consistency for all your marine and industrial applications.



UNION P80 PVC Foam Core in kayak construction - Lightweight marine-grade material

Kayaking

Railway composite components using UNION P80 PVC Foam Core Board

Railway

Yacht deck core material - UNION P80 PVC Foam Sheet with marine certification

Yacht


Surface Technology

Technical specifications of UNION P80 PVC Foam surface treatments - Groove/punch dimensions


Available Sizes and Thicknesses

Model Plain Board Size (mm) Grooved / Perforated & Contour Board Size (mm) Thickness (mm) Process
P80 2280*1080 1140*1080 1/1.2 Flat sheet
P80 2280*1080 1140*1080 1.5 Flat sheet
P80 2280*1080 1140*1080 2 Flat sheet
P80 2280*1080 1140*1080 3 Flat sheet
P80 2280*1080 1140*1080 4 Flat sheet
P80 2280*1080 1140*1080 5 Flat sheet
P80 2280*1080 1140*1080 6 Flat sheet
P80 2280*1080 1140*1080 7 Flat sheet
P80 2280*1080 1140*1080 8 Flat sheet
P80 2280*1080 1140*1080 9 Flat sheet
P80 2280*1080 1140*1080 10 Flat sheet
P80 2280*1080 1140*1080 12 Flat sheet
P80 2280*1080 1140*1080 14 Flat sheet
P80 2280*1080 1140*1080 15 Flat sheet
P80 2280*1080 1140*1080 18 Flat sheet
P80 2280*1080 1140*1080 19 Flat sheet
P80 2280*1080 1140*1080 20 Flat sheet
P80 2280*1080 1140*1080 25 Flat sheet
P80 2280*1080 1140*1080 30 Flat sheet
P80 2280*1080 1140*1080 32 Flat sheet
P80 2280*1080 1140*1080 35 Flat sheet
P80 2280*1080 1140*1080 36 Flat sheet
P80 2280*1080 1140*1080 38 Flat sheet
P80 2280*1080 1140*1080 40 Flat sheet
P80 2280*1080 1140*1080 45 Flat sheet
P80 2280*1080 1140*1080 50 Flat sheet
P80 2280*1080 1140*1080 60 Flat sheet
P80 2280*1080 1140*1080 65 Flat sheet
P80 2280*1080 1140*1080 70 Flat sheet

Product Specifications


Item

Test Standard

P80

Density (kg/m³)

AM-008/ISO845

Average

80

Minimum

72-92

Compressive Strength (Mpa)

AM-014/ISO844

Average

1.4

Minimum

1.15

Compressive Modulus (Mpa)

AM-014/ISO844

Average

90

Minimum

80

Shear Strength (Mpa)

ISO1922

Average

1.15

Minimum

1

Shear Mpdulus (Mpa)

ISO1922

Average

27

Minimum

23

Shear Strain (%)

ISO1922

Average

30

Minimum

20

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

2.55

Minimum

2.2

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

105

Minimum

90




Product Certification


UNION COMPOSITES ISO 9001 certificate - Quality management for PVC Foam production

ISO 9001

UNION's ISO 14001 environmental certification for PVC Foam manufacturing

ISO 14001

RS marine certification for UNION P80 PVC Foam Core Board

RS Certification


DNV GL certification for UNION P80 PVC Foam Sheet

TAK00001DV

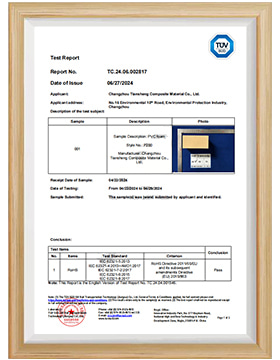

RoHS compliance certificate for UNION PVC Foam materials

RoHS

Flame retardant test report for UNION P80 PVC Foam Core

Flame Retardant Report

Production and Delivery

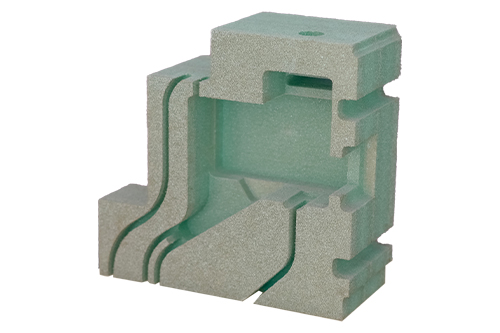

Custom-shaped UNION P80 PVC Foam components - Precision CNC cutting

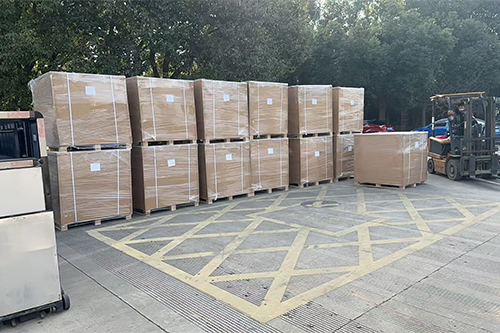

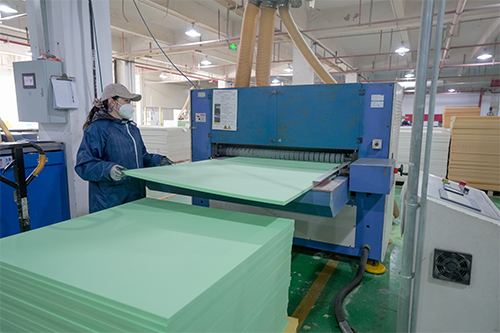

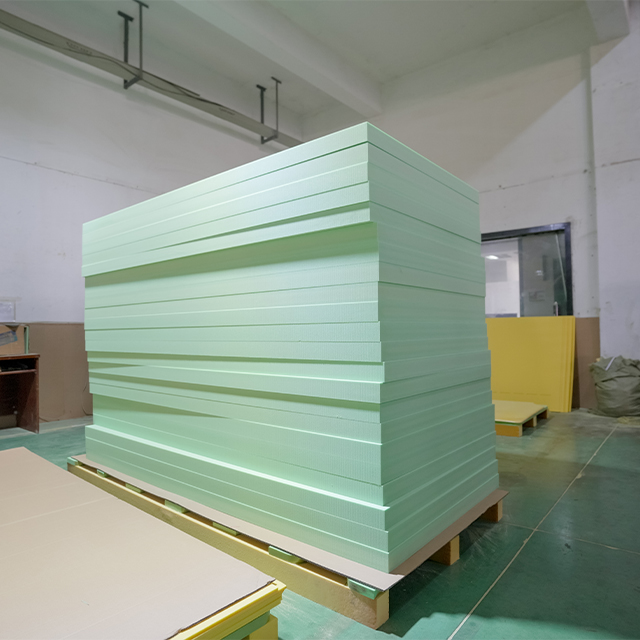

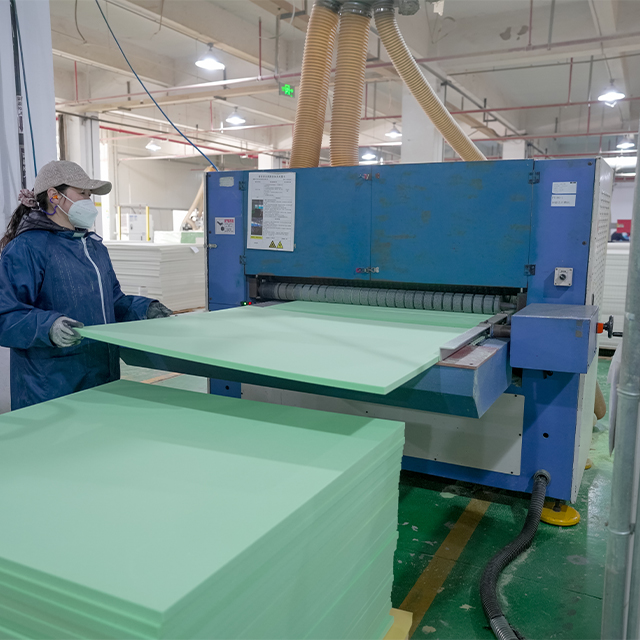

 UNION factory production of P80 PVC Foam Core Boards - Automated manufacturing process UNION P80 PVC Foam Sheets packed for export - Secure packaging for global shipping


FAQs




Q: What is your thickness and thickness tolerance?

A: Our regular thickness is from 2mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Q: Which surface treatment do you have of PVC foam?

A: Plain board;

Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board;

Scrim and punched board;

Hyperbolic board;

Hyperbolic punching plate...


Q: How about your delivery time?

A: We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


Q: How about your MOQ and samples?

A: No MOQ, we could provide A4 free samples.
