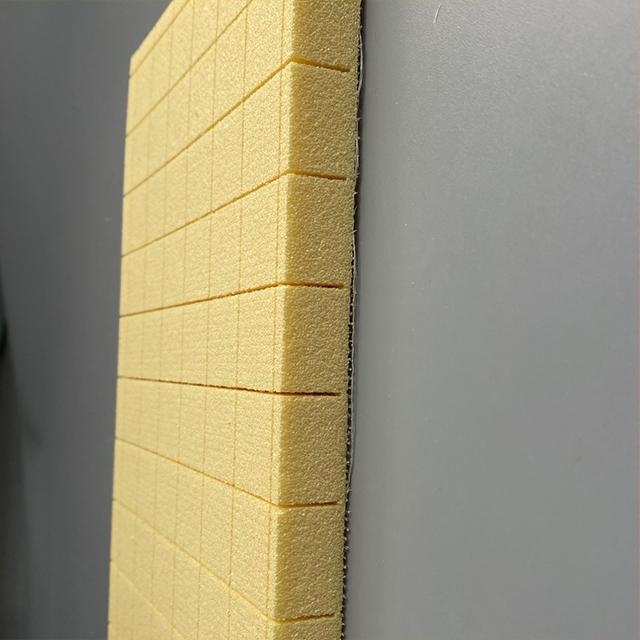

Fiberglass scrim reinforced P60 PVC foam with textured surface
Fiberglass scrim reinforced P60 PVC foam with textured surface Fiberglass scrim reinforced P60 PVC foam with textured surface
Perforated UNION P60 PVC foam board with uniform holes for composite applications Perforated UNION P60 PVC foam board with uniform holes for composite applications

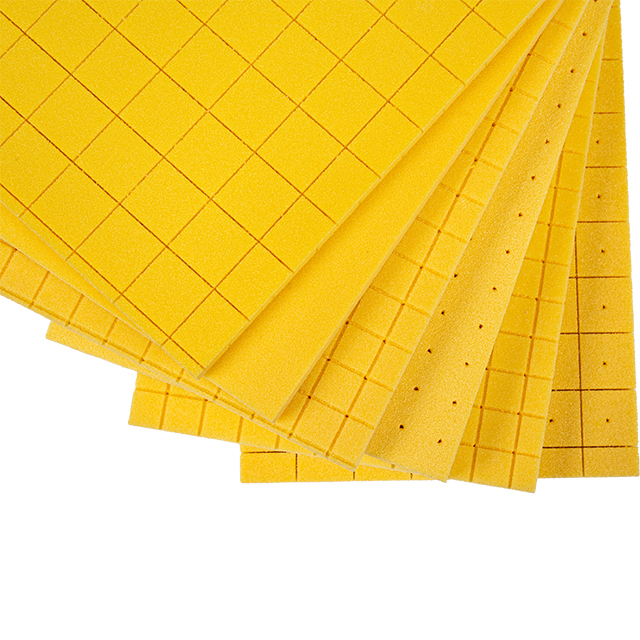

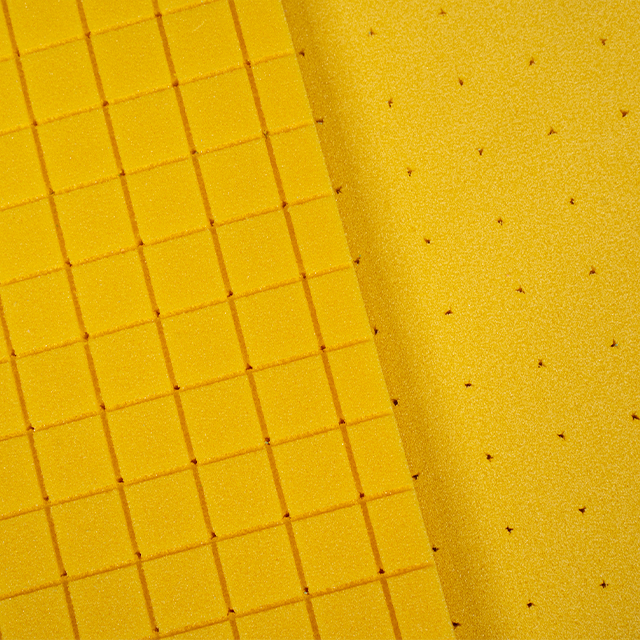

UNION P60 PVC foam core board with precision grooves for enhanced resin bonding UNION P60 PVC foam core board with precision grooves for enhanced resin bonding

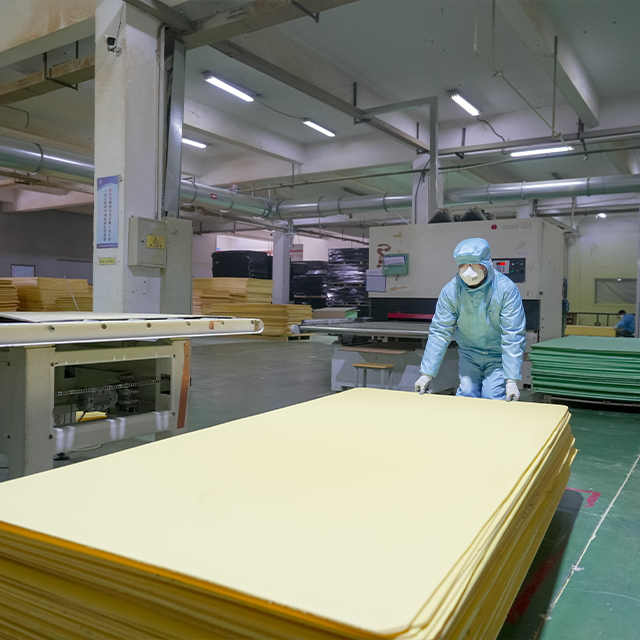

Quality control inspection of P60 PVC foam sheets in UNION factory Quality control inspection of P60 PVC foam sheets in UNION factory

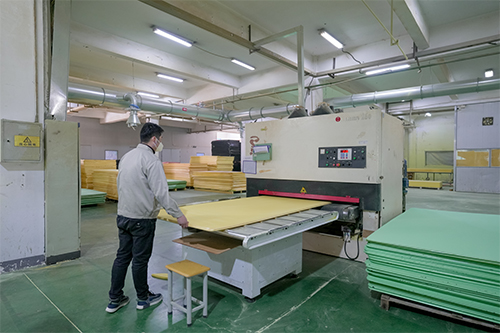

UNION factory automated production line for PVC foam core boards UNION factory automated production line for PVC foam core boards

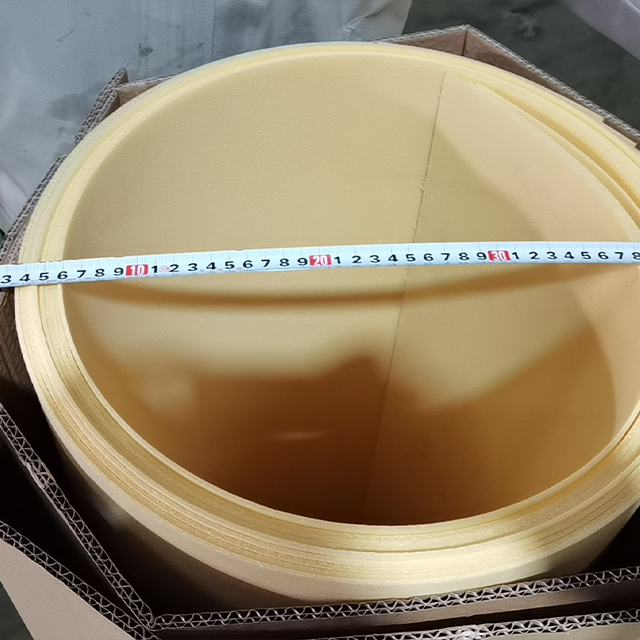

Ultra-thin 2mm UNION P60 PVC foam sheet for lightweight composites Ultra-thin 2mm UNION P60 PVC foam sheet for lightweight composites

loading

UNION PVC FOAM - P60

UNION PVC Foam-P60 is a durable closed-cell PVC foam core board manufactured by UNION COMPOSITES, a leading PVC Foam Core Board Sheet manufacturer and supplier in China. This high-performance material is specifically engineered for wind energy applications (blades & nacelles), boatbuilding, and RV manufacturing, offering exceptional strength-to-weight ratio and weather resistance.
This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

  • P-60

  • UNION

Availability:
Quantity:
Inquire Add to Basket
Product Description
Specifications
Product Certification
Production & Delivery
FAQS


UNION P60 PVC Foam Core Board: Premium Composite Material Solutions


As a trusted PVC Foam Core Board Sheet manufacturer and supplier, UNION COMPOSITES' P60 grade offers:

Key Advantages


✔ Superior Workability - Easily sawed, die-cut, drilled for diverse applications
✔ Exceptional Durability - 40+ year lifespan with:

  • High impact/compression strength

  • Low water absorption (<1%)

  • UV/chemical corrosion resistance

  • Fire-retardant properties

✔ Cost-Effective Alternative - Outperforms wood/aluminum with:

  • Zero maintenance requirements

  • Consistent performance in harsh weather


Technical Excellence


  • Density: 60kg/m³ (54-69 range)

  • Tensile Strength: 1.9MPa | Compressive Strength: 0.93MPa

  • Perfect bonding with resins/laminates


Certified Quality


ISO 9001/14001, RoHS, and marine certifications guarantee reliability for:
• Wind turbine blades & nacelles
• Marine vessel construction
• RV components

Why UNION P60?


10+ years expertise in composite materials with customized surface treatments (grooved/punched/scrim) available.



UNION P60 PVC foam core used in marine boatbuilding construction

Boatbuilding

RV composite panels using UNION P60 PVC foam core material

RV (Recreational Vehicle)

Wind turbine blade core material with UNION P60 PVC foam

Wind Energy


Surface Technology

Technical specifications for UNION P60 PVC foam surface treatments and parameters


Product Specifications


Item

Test Standard

P60

Density (kg/m³)

AM-008/ISO845

Average

60

Minimum

54-69

Compressive Strength (Mpa)

AM-014/ISO844

Average

0.93

Minimum

0.75

Compressive Modulus (Mpa)

AM-014/ISO844

Average

70

Minimum

60

Shear Strength (Mpa)

ISO1922

Average

0.76

Minimum

0.7

Shear Mpdulus (Mpa)

ISO1922

Average

22

Minimum

18

Shear Strain (%)

ISO1922

Average

20

Minimum

15

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

1.9

Minimum

1.5

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

90

Minimum

70




Product Certification

UNION COMPOSITES ISO 9001 quality management system certification

ISO 9001

UNION's environmental management system ISO 14001 certificate

ISO 14001

Marine certification for UNION P60 PVC foam core materials

RS Certification


DNV GL certification for UNION PVC foam composite materials

TAK00001DV

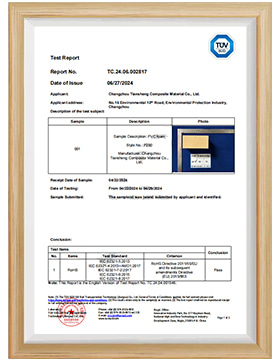

RoHS compliance test report for UNION PVC foam materials

RoHS

Flame retardant test certification for UNION P60 PVC foam

Flame Retardant Report

Production and Delivery


Close-up of UNION P60 PVC foam extrusion manufacturing process

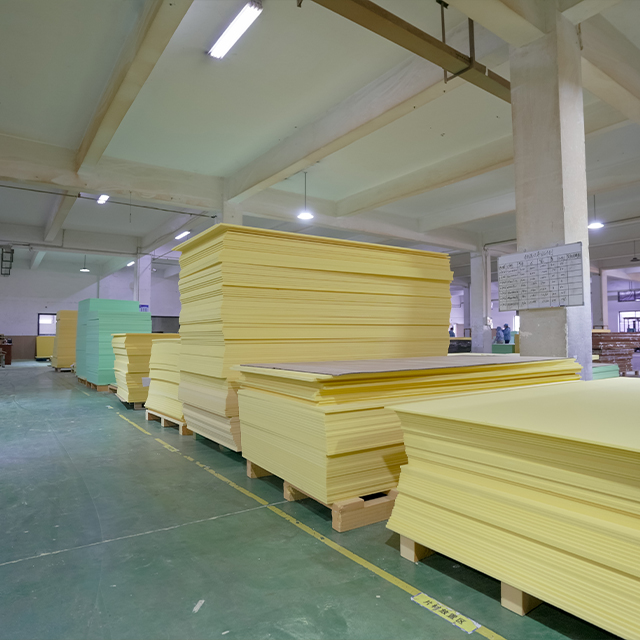

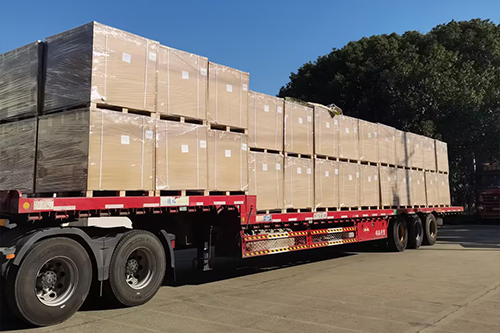

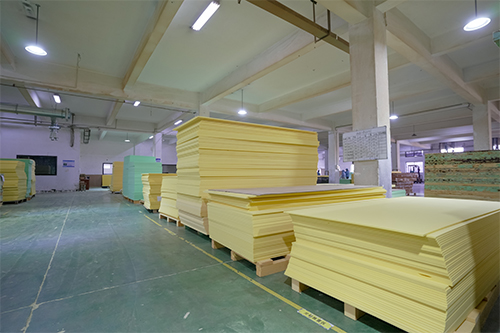

 UNION's 10,000㎡ factory facility for PVC foam core production Loading UNION P60 PVC foam sheets for international shipping


FAQs


Q: What is your thickness and thickness tolerance?

A: Our regular thickness is from 2mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Q: Which surface treatment do you have of PVC foam?

A: Plain board; Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board; Scrim and punched board;

Hyperbolic board; Hyperbolic punching plate...

We could also support customized surface treatment.


Q: How about your delivery time?

A: We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


Q: How about your MOQ and samples?

A: No MOQ, we could provide A4 free samples.


Q: Do you have other relevant materials?

A: Yes, we have all materials for infusion and autoclave process. Like peel ply, vacuum bagging film, flow mesh, infusion tube, spiral tube, sealant tape, vacuum hose, vacuum connector and many others.


Product Description
Specifications
Product Certification
Production & Delivery
FAQS

WHY CHOOSE UNION

Cost-Saving Premium Quality

UNION delivers TOP 3 global quality at 20-30% lower cost vs EU/US brands.

Core Expertise

Specializing in composite materials manufacturing with 15+ years of dedicated PVC foam innovation

Quality Assurance

Strict quality control delivers batch-to-batch consistency across all products

Tailored Solutions

Full customization capabilities to meet specific application requirements
CONTACT US NOW
UNION PVC Foam Production Facility | ISO-Certified CNC Manufacturing Equipment
Closed-Cell PVC Foam Manufacturing Process | UNION Core Board Production Workflow

PRODUCTION & DELIVERY PROCESSE​​​​​​​

01 Order Confirmation

01
Order Confirmation
02 Production

02
Production
03 Quality Control

03
Quality Control
04 Packing

04
Packing
05 Delivery

05
Delivery
06 After-Sale Service

06
After-Sale Service

COME ON, DO NOT HESTITATE

A Passionate Team is ready to deliver you an outstanding PVC Foam project.

RELATED PRODUCTS

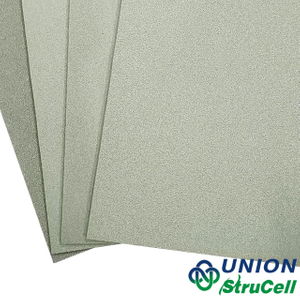

Heavy-duty StruCell® P250 PVC foam board (250kg/m³) for marine and aerospace applications
StruCell® P250 Structural PVC Foam Board

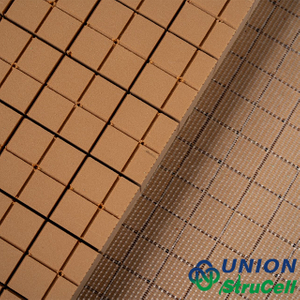

P200 PVC structural foam core in marine bulkhead construction
StruCell® P200 Structural PVC Foam Board

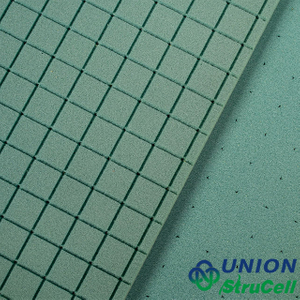

Structural grooved PVC foam board P130 (130kg/m³) for lightweight motorhome interiors
StruCell® P130 Structural PVC Foam Board

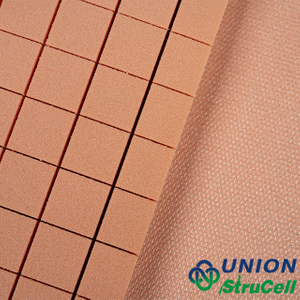

Heavy-duty StruCell® P100 structural PVC foam sheet (100kg/m³) for marine bulkheads and shipbuilding
StruCell® P100 Structural PVC Foam Board

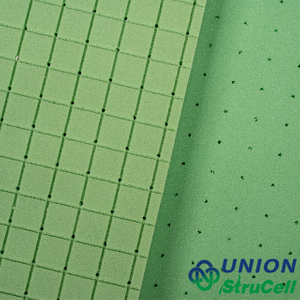

DNV GL-certified StruCell® P80 structural PVC foam with grooved surface for marine hulls and camper van panels
StruCell® P80 Structural PVC Foam Board

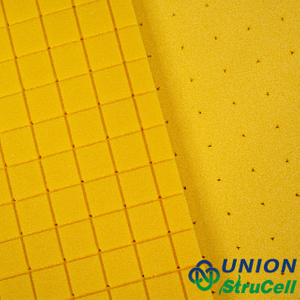

High-strength StruCell® P60 structural PVC foam core board for marine applications
StruCell® P60 Structural PVC Foam Board

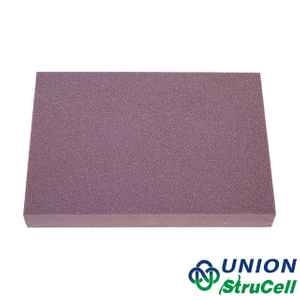

StruCell® P45 structural PVC foam core board with DNV GL certification, ideal for shipbuilding and refrigerated trucks
