UNION P45 PVC FOAM BOARD
You are here: Home » Products » PVC FOAM » UNION P45 PVC FOAM BOARD

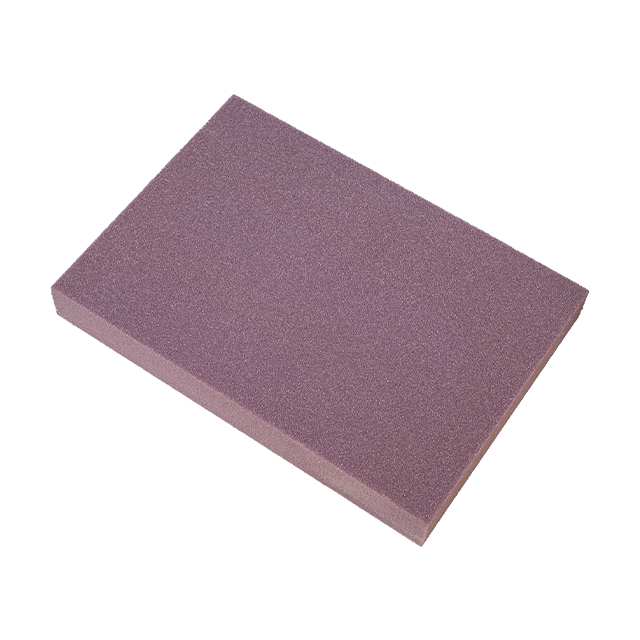

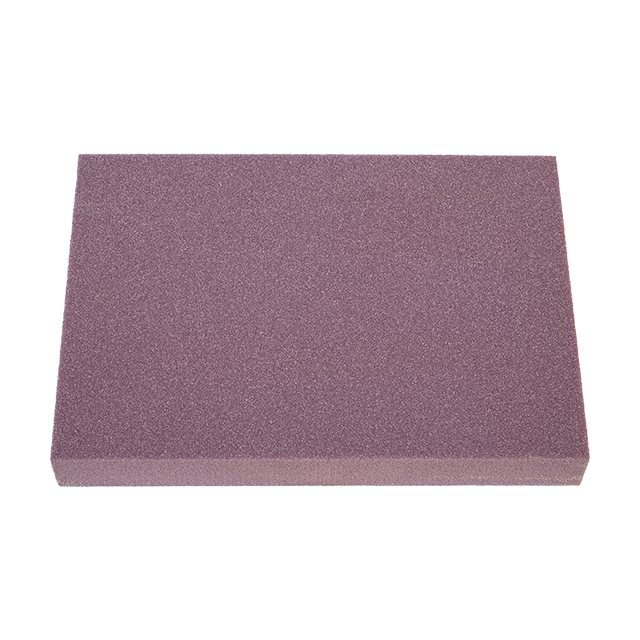

P45 PVC Foam Board Closed-Cell Structure | 48kg/m³ Density Core Material
P45 PVC Foam Board Closed-Cell Structure | 48kg/m³ Density Core Material P45 PVC Foam Board Closed-Cell Structure | 48kg/m³ Density Core Material
P45 PVC Foam Core Board in LNG Carrier Insulation | -50°C Performance P45 PVC Foam Core Board in LNG Carrier Insulation | -50°C Performance
Custom Perforated P45 PVC Foam Sheet | Resin Flow Optimization Custom Perforated P45 PVC Foam Sheet | Resin Flow Optimization
ISO 9001 Certified PVC Foam Sheet Production | UNION Factory ISO 9001 Certified PVC Foam Sheet Production | UNION Factory
Precision Lamination of P45 Foam Core Board | 2650x1220mm Size Precision Lamination of P45 Foam Core Board | 2650x1220mm Size
Batch Quality Control for P45 PVC Foam Sheets | ±0.2mm Thickness Guarantee Batch Quality Control for P45 PVC Foam Sheets | ±0.2mm Thickness Guarantee

loading

UNION P45 PVC FOAM BOARD

As a leading PVC foam core board manufacturer, UNION delivers P45 closed-cell polymer foam engineered for cryogenic applications. This cross-linked foam sheet excels in:

✅ Superior Thermal Retention: 0.035 W/m·K thermal conductivity for refrigerated systems
✅ Structural Durability: 48kg/m³ density with 0.6MPa compressive strength
✅ Certified Performance: DNV GL TAK00001DV certified for LNG containment systems

Key Applications

Cold Chain Logistics
• Refrigerated truck wall panels  • -25°C continuous operation stability

Energy Transportation
• LNG carrier insulation layers  • 25+ year marine corrosion resistance

This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

  • P-45

  • UNION

Availability:
Quantity:
Inquire Add to Basket

PVC Foam Board Closed cell PVC Foam CNC Custom PVC Foam PVC Foam Core PVC Foam Sheet Marine Grade PVC Foam PVC Foam Manufacturer PVC Foam Marine Structural Foam Core Rigid PVC Foam
Product Description
Specifications
Product Certification
Production & Delivery
FAQS

UNION P45 PVC Foam Core Sheet Description

Manufacturing Process

PVC foam sheets are produced by expanding the reactive liquid in a controlled space under tightly controlled conditions, forming a closed-cell, cross-linked polymer foam structure.

Key Material Properties

• Closed-cell structure with uniform density distribution
• Lightweight and rigid construction
• Excellent mechanical & structural properties
• Thickness tolerance: ±0.2mm

Standard Specifications

• Plain board: 2650×1220mm
• Surface-treated board: 1320×1220mm

Primary Applications

• Refrigerated truck compartment plates
• LNG ship insulation components
• RV structural panels



P45 PVC Foam Core Sheet for Refrigerated Truck Walls | -20°C Thermal Insulation

Refrigerated Trucks

Cryogenic P45 PVC Foam in LNG Carrier Tanks | -162°C Material Stability

LNG Ships

Lightweight P45 PVC Foam Board for RV Flooring | 48kg/m³ High Strength-to-Weight Ratio

RV (Recreational Vehicle)


Surface Technology

P45 PVC Foam Board Surface Treatment Specifications | Perforated & Grooved Patterns Technical Data


Product Specifications


Item

Test Standard

P45

Density ( kg/m³)

AM-008/ISO845

Average

48

Minimum

43-55

Compressive Strength (Mpa)

AM-014/ISO844

Average

0.6

Minimum

0.5

Compressive Modulus (Mpa)

AM-014/ISO844

Average

50

Minimum

45

Shear Strength (Mpa)

ISO1922

Average

0.55

Minimum

0.5

Shear Mpdulus (Mpa)

ISO1922

Average

15

Minimum

12

Shear Strain (%)

ISO1922

Average

10

Minimum

8

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

1.4

Minimum

1.1

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

55

Minimum

45




Product Certification

ISO 9001 Certified PVC Foam Sheet Manufacturing | UNION Quality Management System

ISO 9001

Eco-Friendly PVC Foam Production | ISO 14001 Environmental Certification

ISO 14001

DNV GL Type Approved Marine Composite | RS Certification TAK00001DV

RS Certification


DNV GL Certified Cryogenic Material | -162°C LNG Tank Compliance

TAK00001DV

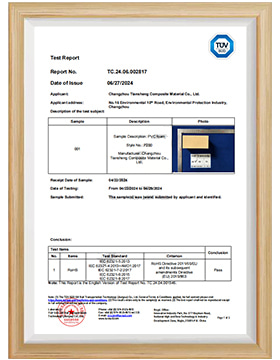

EU RoHS Compliant PVC Foam

RoHS

PVC Foam Self-Extinguishing Material Certification

Flame Retardant Report

Production and delivery

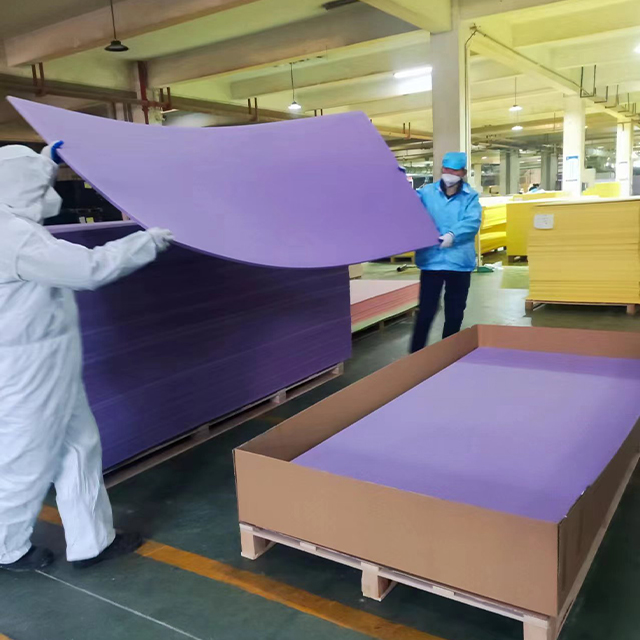

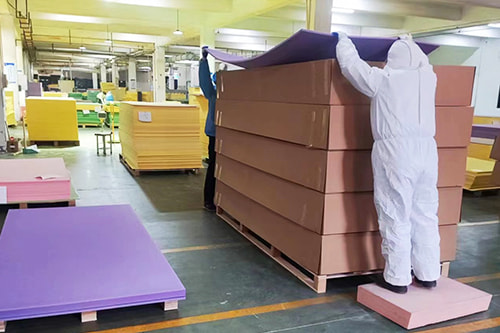

AEO-Certified PVC Foam Board Packaging | Moisture-Proof Palletization

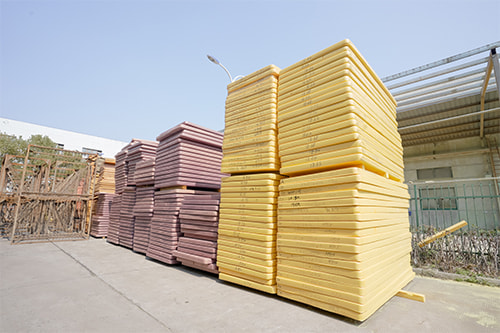

 FCL/LCL Global PVC Foam Sheet Shipping | 30+ Country Logistics Network Real-Time PVC Foam Board Shipment Tracking


FAQS


Q: What is your thickness and thickness tolerance?

A: Our regular thickness is from 2mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Q: Which surface treatment do you have of PVC foam?

A: Plain board; Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board; Scrim and punched board;

Hyperbolic board; Hyperbolic punching plate...

We could also support customized surface treatment.


Q: How about your delivery time?

A: We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


Q: How about your MOQ and samples?

A: No MOQ, we could provide A4 free samples.


Q: Do you have other relevant materials?

A: Yes, we have all materials for infusion and autoclave process. Like peel ply, vacuum bagging film, flow mesh, infusion tube, spiral tube, sealant tape, vacuum hose, vacuum connector and many others.


Product Description
Specifications
Product Certification
Production & Delivery
FAQS

WHY CHOOSE UNION COMPOSITES

Cost-Saving Premium Quality

UNION delivers TOP 3 global quality at 20-30% lower cost vs EU/US brands.

Core Expertise

Specializing in composite materials manufacturing with 15+ years of dedicated PVC foam innovation

Quality Assurance

Strict quality control delivers batch-to-batch consistency across all products

Tailored Solutions

Full customization capabilities to meet specific application requirements
CONTACT US NOW
UNION PVC Foam Production Facility | ISO-Certified CNC Manufacturing Equipment
Closed-Cell PVC Foam Manufacturing Process | UNION Core Board Production Workflow

PRODUCTION & DELIVERY PROCESSE​​​​​​​

01 Order Confirmation

01
Order Confirmation
02 Production

02
Production
03 Quality Control

03
Quality Control
04 Packing

04
Packing
05 Delivery

05
Delivery
06 After-Sale Service

06
After-Sale Service

COME ON, DO NOT HESTITATE

A Passionate Team is ready to deliver you an outstanding PVC Foam project.
