UNION P250 PVC FOAM BOARD
You are here: Home » Products » PVC FOAM » UNION P250 PVC FOAM BOARD

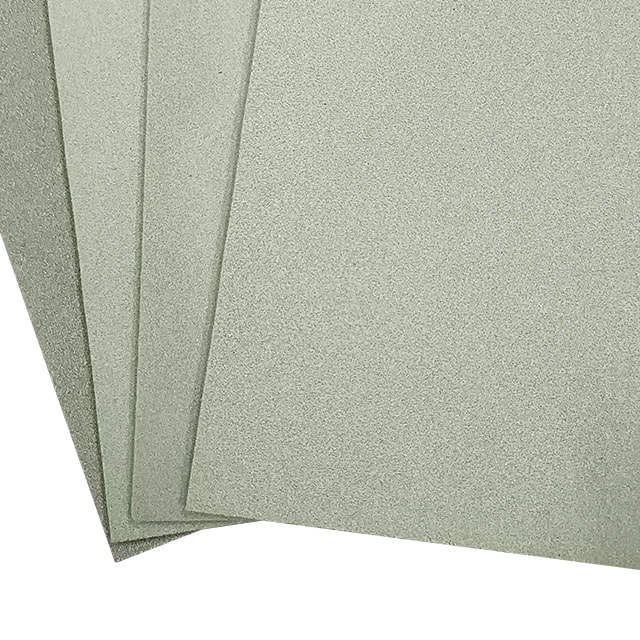

UNION P250 PVC Foam Core Board | 250kg/m³ High-Density Closed-Cell Foam

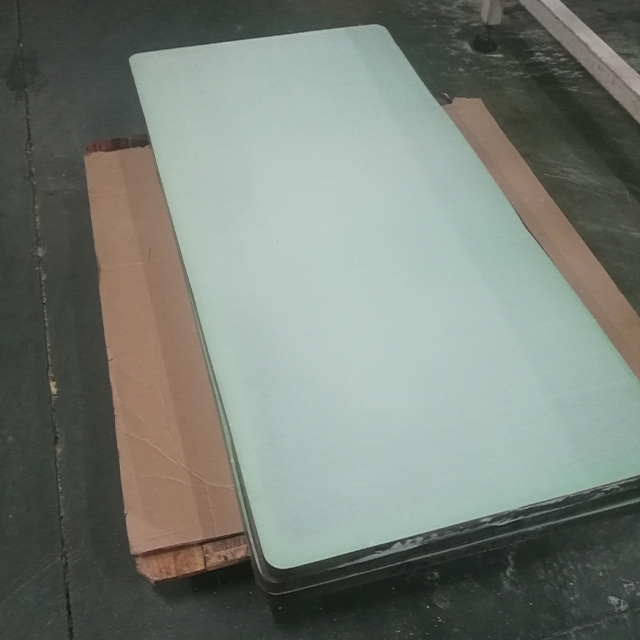

UNION P250 PVC Foam Core Board | 250kg/m³ High-Density Closed-Cell Foam UNION P250 PVC Foam Core Board | 250kg/m³ High-Density Closed-Cell Foam

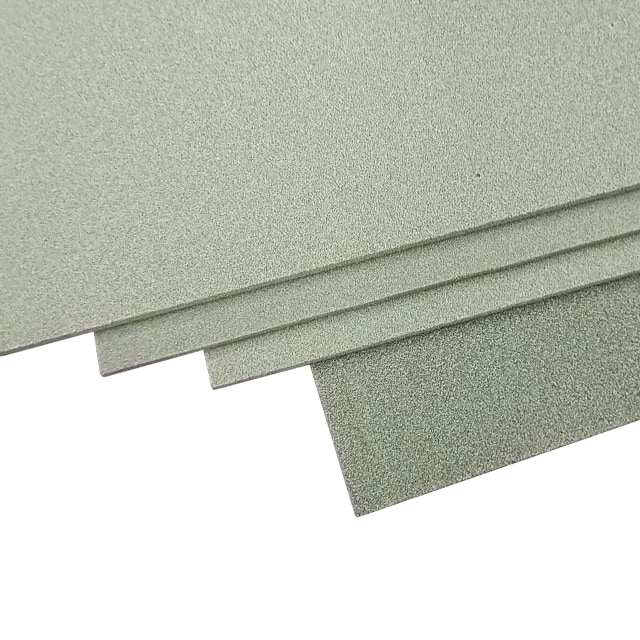

UNION P250 Smooth Surface PVC Foam Board | 6.2MPa Compressive Strength UNION P250 Smooth Surface PVC Foam Board | 6.2MPa Compressive Strength
PVC Foam Core Sheet | DNV GL Certified Marine Material PVC Foam Core Sheet | DNV GL Certified Marine Material

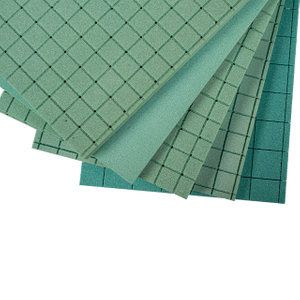

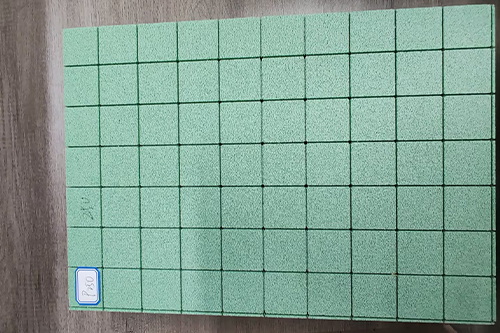

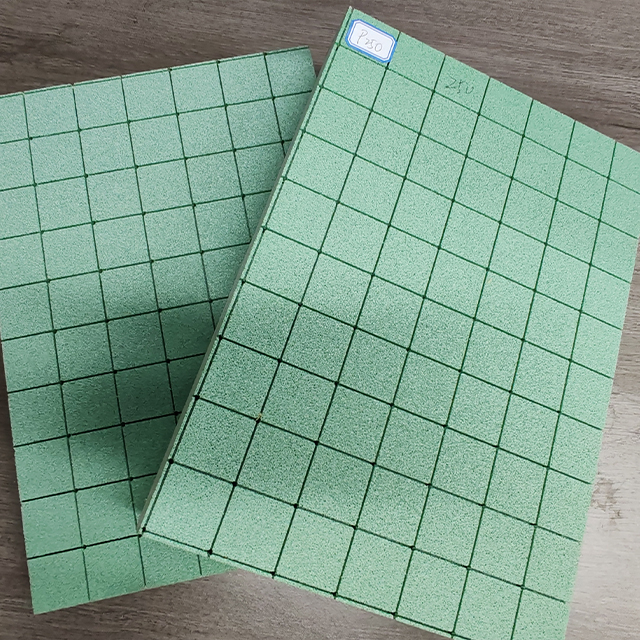

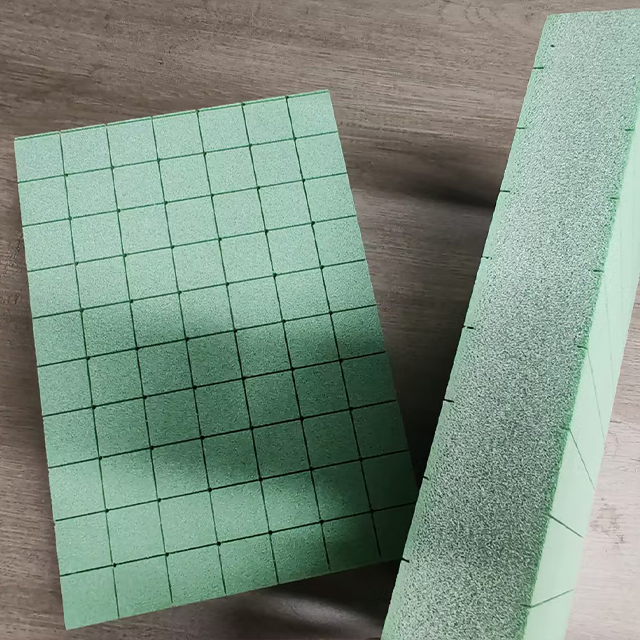

UNION P250 Grooved PVC Foam Board for Resin Flow | CNC Precision Machined Surface UNION P250 Grooved PVC Foam Board for Resin Flow | CNC Precision Machined Surface
Perforated PVC Foam Core Sheet | Φ5mm Holes for Composite Bonding Perforated PVC Foam Core Sheet | Φ5mm Holes for Composite Bonding
UNION Virgin PVC Foam Panel UNION Virgin PVC Foam Panel

loading

UNION P250 PVC FOAM BOARD

UNION P250 PVC (polyvinyl chloride) foam board is one of the most superior closed cell foam material.

Technical Specifications
• Density: 250kg/m³
• Compressive Strength: 6.2MPa
• Tensile Strength: 9.2MPa

Certified Performance
• DNV GL TAK00001DV Certification
• UL94 V-0 Fire Resistance
• RoHS Compliant Material

Core Applications
• Marine Composite Structures (Triple Boatbuilding Certification)
• Aerospace Tooling Components
• High-Performance Automotive Parts

This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

  • P-250

  • UNION

Availability:
Quantity:
Inquire Add to Basket
Product Description
Specifications
Product Certification
Production & Delivery
FAQS

UNION P250 PVC Foam Core Board Description

Material Characteristics

      • Closed-cell crosslinked polymer structure
      • High hardness-to-weight ratio
      • Impact resistance & fatigue resistance
      • Low resin absorption rate
      • UL94 V-0 fire resistance (self-extinguishing)
      • Sound absorption & thermal insulation
      • Non-degradable material stability
      • Polyethylene compatibility

Industrial Applications

      • New energy vehicle components
          - Structural panels
          - Battery enclosures
      • Vacuum & heat forming processes
          - Aerospace tooling
          - Marine composite molds

Compatible Manufacturing Processes

      • Hand lay-up techniques
      • Spray-up application
      • Vacuum infusion systems
      • Resin Transfer Molding (RTM)
      • Autoclave processing
      • Prepreg system integration

Target Industries

      • Automotive manufacturing
      • Aerospace engineering
      • Marine construction
      • Wind energy systems




UNION P250 Marine PVC Foam Core Board | DNV GL Certified Hull Material

Boatbuilding

PVC Foam Sandwich Hull Construction

Boatbuilding

Marine-Grade PVC Foam Board Production | ISO 9001 Certified

Boatbuilding


Surface Technology

UNION P250 Surface Treatment Specifications | CNC Grooving & Perforation Patterns


Product Specifications



Item

Test Standard

P250

Density (kg/m³)

AM-008/ISO845

Average

250

Minimum

225-285

Compressive Strength (Mpa)

AM-014/ISO844

Average

6.2

Minimum

5.4

Compressive Modulus (Mpa)

AM-014/ISO844

Average

300

Minimum

240

Shear Strength (Mpa)

ISO1922

Average

5.4

Minimum

3.9

Shear Mpdulus (Mpa)

ISO1922

Average

104

Minimum

88

Shear Strain (%)

ISO1922

Average

45

Minimum

35

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

9.2

Minimum

8

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

360

Minimum

320




Product Certification

UNION P250 PVC Foam Board ISO 9001 Certification | Marine & Shipbuilding Composite Quality Standard

ISO 9001

UNION PVC Foam Sheet ISO 14001 Compliance | Eco-Friendly Shipbuilding Materials

ISO 14001

UNION Marine PVC Foam Board RS Certification | DNV GL TAK00001DV Approved

RS Certification


UNION P250 DNV Certified Marine PVC Foam Board | 250kg/m³ Density Core Material

TAK00001DV

UNION RoHS Compliant PVC Foam Sheet | Shipbuilding Interior Material Certification

RoHS

UNION Fire-Resistant PVC Foam Board | UL94 V-0 Marine Material Certification

Flame Retardant Report


Production and Delivery


UNION Automotive PVC Foam Board Quality Inspection | ±0.2mm Thickness Tolerance

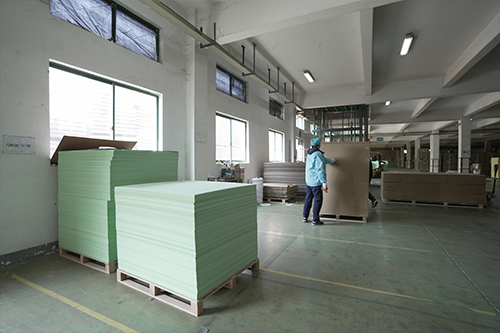

 UNION P250 Marine PVC Foam Core Board Production Line | ISO 9001 Certified UNION PVC Foam Sheet Global Delivery | AEO-Certified Export Packaging


FAQs



Q: What is your thickness and thickness tolerance?

A: Our regular thickness is from 2mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Q: Which surface treatment do you have of PVC foam?

A: Plain board; Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board; Scrim and punched board;

Hyperbolic board; Hyperbolic punching plate...

We could also support customized surface treatment.


Q: How about your delivery time?

A: We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


Q: How about your MOQ and samples?

A: No MOQ, we could provide A4 free samples.


Q: Do you have other relevant materials?

A: Yes, we have all materials for infusion and autoclave process. Like peel ply, vacuum bagging film, flow mesh, infusion tube, spiral tube, sealant tape, vacuum hose, vacuum connector and many others.


Product Description
Specifications
Product Certification
Production & Delivery
FAQS

WHY CHOOSE UNION

Cost-Saving Premium Quality

UNION delivers TOP 3 global quality at 20-30% lower cost vs EU/US brands.

Core Expertise

Specializing in composite materials manufacturing with 15+ years of dedicated PVC foam innovation

Quality Assurance

Strict quality control delivers batch-to-batch consistency across all products

Tailored Solutions

Full customization capabilities to meet specific application requirements
CONTACT US NOW
UNION PVC Foam Production Facility | ISO-Certified CNC Manufacturing Equipment
Closed-Cell PVC Foam Manufacturing Process | UNION Core Board Production Workflow

PRODUCTION & DELIVERY PROCESSE​​​​​​​

01 Order Confirmation

01
Order Confirmation
02 Production

02
Production
03 Quality Control

03
Quality Control
04 Packing

04
Packing
05 Delivery

05
Delivery
06 After-Sale Service

06
After-Sale Service

COME ON, DO NOT HESTITATE

A Passionate Team is ready to deliver you an outstanding PVC Foam project.
