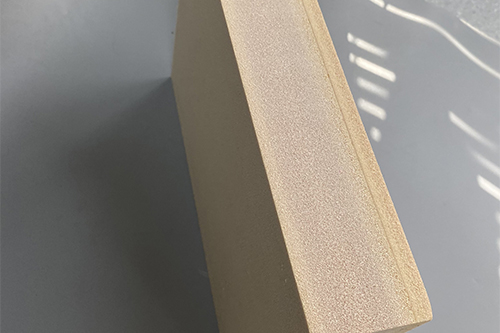

P200 PVC Foam Core with Precision Perforated Surface | 5mm Hole Pattern
P200 PVC Foam Core with Precision Perforated Surface | 5mm Hole Pattern P200 PVC Foam Core with Precision Perforated Surface | 5mm Hole Pattern

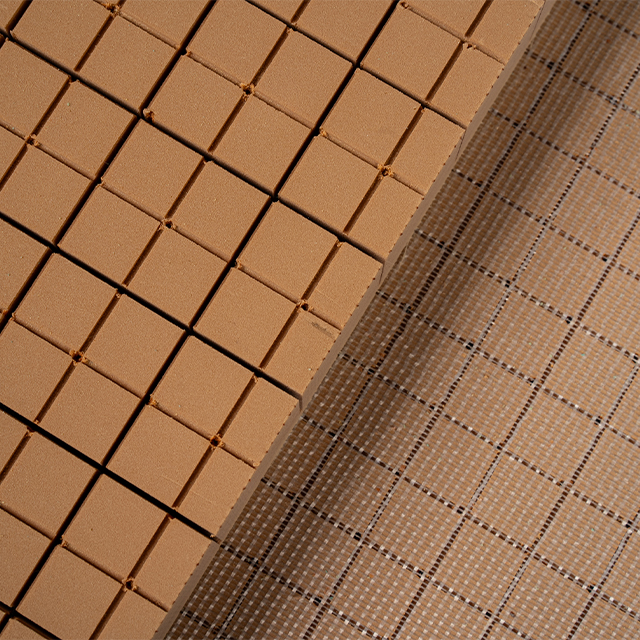

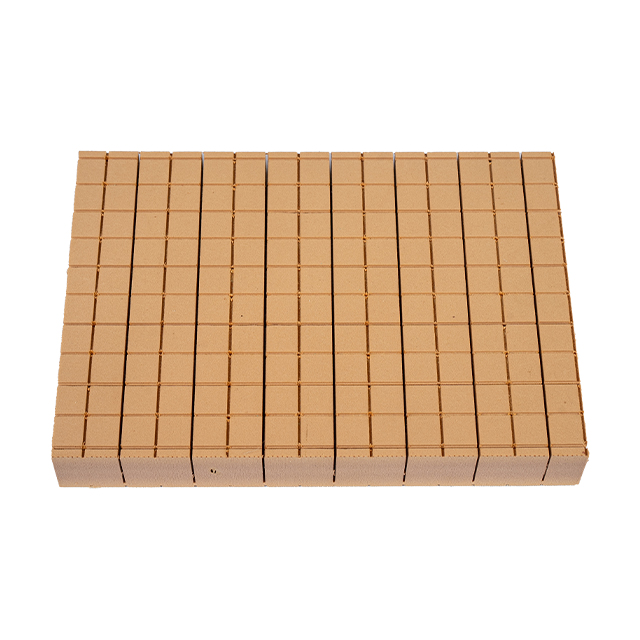

Grooved Surface P200 PVC Foam Core | Resin Channel Optimization Grooved Surface P200 PVC Foam Core | Resin Channel Optimization

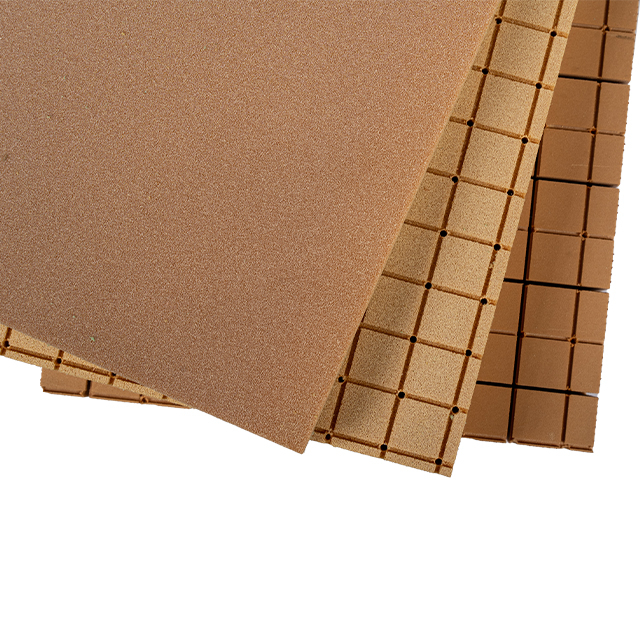

P200 PVC Foam Core with Combined Perforation & Grooving | Hyperbolic Pattern P200 PVC Foam Core with Combined Perforation & Grooving | Hyperbolic Pattern

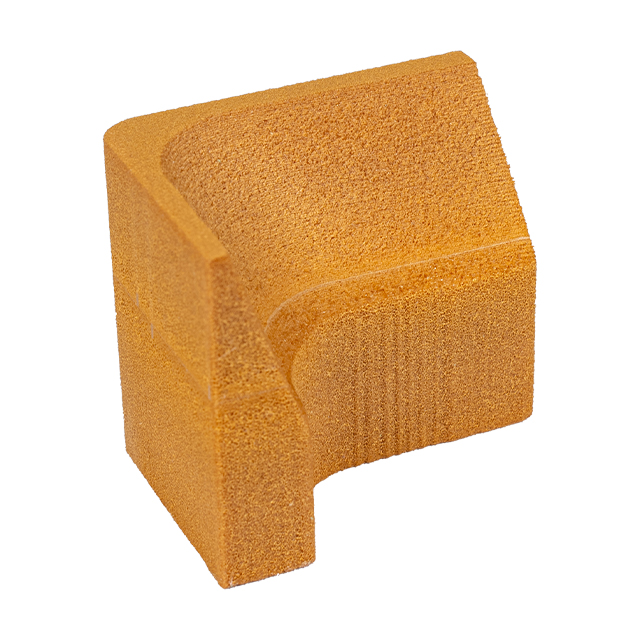

Custom CNC-Cut P200 PVC Foam Core | Aerospace-Grade Precision Custom CNC-Cut P200 PVC Foam Core | Aerospace-Grade Precision

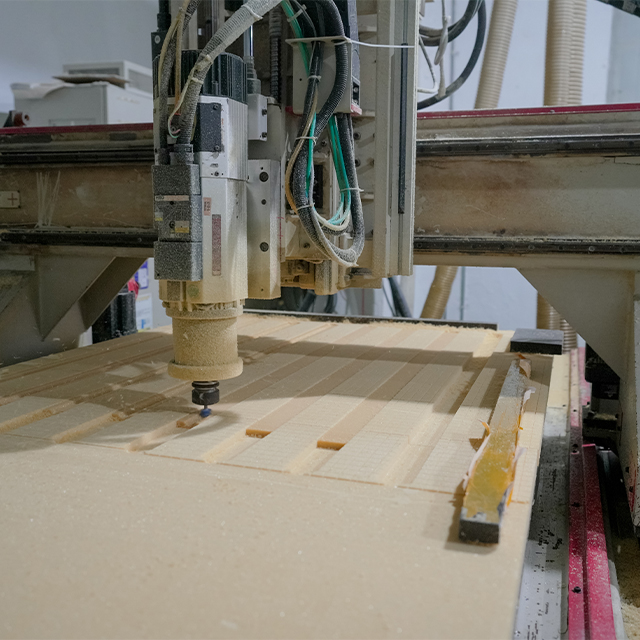

CNC Precision Cutting of P200 PVC Foam Core | UNION Factory Process CNC Precision Cutting of P200 PVC Foam Core | UNION Factory Process

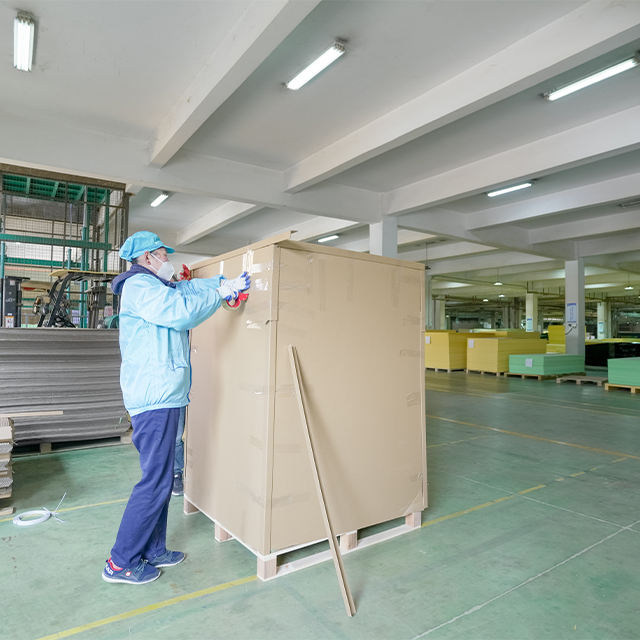

P200 PVC Foam Core Packaging & Palletization | FCL/LCL Global Shipping P200 PVC Foam Core Packaging & Palletization | FCL/LCL Global Shipping

loading

UNION P200 PVC FOAM CORE

Engineered for precision composite manufacturing, the UNION P200 PVC Foam Core is a 200kg/m³ density closed-cell foam core specifically formulated for autoclave processing and vacuum infusion applications. Key features include:

✅ Aerospace-Grade Material: DNV GL-certified for marine structures & aircraft interiors
✅ Advanced Polymer Matrix: Chlorine-enhanced formulation for chemical resistance
✅ Process-Optimized: 0.2mm thickness tolerance for mold tooling precision
✅ Multi-Industry Application: Wind turbine blades, ship bulkheads, automotive tooling

This PVC Foam Core uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

  • P-200

  • UNION

Availability:
Quantity:
Inquire Add to Basket

PVC Foam Core pvc structural foam Rigid PVC Foam Core PVC Foam Closed cell PVC Foam PVC Foam Board Marine Grade PVC Foam PVC Foam Manufacturer Marine Structural Foam Core Structural PVC Foam Core
Product Description
Specifications
Product Certification
Production & Delivery
FAQS

UNION P200 PVC Foam Core Board Product Description

High-Performance Closed-Cell Foam Core Material

As a leading PVC foam core manufacturer, UNION delivers P200-grade closed-cell PVC foam core with 200kg/m³ density, engineered for precision autoclave processing and vacuum infusion applications.

Core Advantages of P200 PVC Foam Core

  • 4.8MPa Compressive Strength

  • ±0.2mm Thickness Tolerance for aerospace tooling

  • 0.5% Water Absorption for marine environments

Industrial Applications

  • Wind Turbine Blades: Structural core material

  • Marine Bulkheads: DNV GL-certified solutions

  • Aerospace Tooling: Autoclave-ready boards

Key Technical Features

  • ✅ 180-250kg/m³ adjustable density range

  • ✅ 7.1MPa tensile strength (ASTM C297)

  • ✅ UL94 V-0 fire resistance rating

Surface Treatment Options

Available with 8+ professional finishing solutions:

  • Perforated patterns (5-20mm diameter)

  • Uni/bi-directional grooves

  • Scrim-reinforced surfaces



P200 PVC Foam in Autoclave Processing | Marine Composite Manufacturing

Autoclave

DNV GL-Certified P200 Foam for Ship Bulkheads | Marine Composite Solutions

Shipbuilding

Cryogenic P200 PVC Foam for LNG Carrier Insulation | -50°C Performance

LNG Ships



Surface Technology

Custom Surface Treatments for PVC Foam: Perforated & Grooved Patterns

Technical Specifications

Item

Test Standard

P200

Density ( kg/m³)

AM-008/ISO845

Average

200

Minimum

180-250

Compressive Strength (Mpa)

AM-014/ISO844

Average

4.8

Minimum

4.5

Compressive Modulus (Mpa)

AM-014/ISO844

Average

240

Minimum

200

Shear Strength (Mpa)

ISO1922

Average

4.2

Minimum

3.2

Shear Mpdulus (Mpa)

ISO1922

Average

85

Minimum

75

Shear Strain (%)

ISO1922

Average

45

Minimum

35

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

7.1

Minimum

6.3

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

250

Minimum

210




Product Certification

ISO 9001 Certified PVC Foam Production | UNION Composites

ISO 9001

ISO 14001 Environmental Certification | UNION PVC Foam Production

ISO 14001

RS Certification for Marine PVC Foam | UNION Composites

RS Certification


DNV GL Certified Marine PVC Foam (TAK00001DV) | UNION Composites

TAK00001DV

RoHS Compliant PVC Foam | Environmentally Safe Materials

RoHS

UL94 V-0 Fire Retardant PVC Foam Certification | UNION

Flame Retardant Report


Production and Delivery

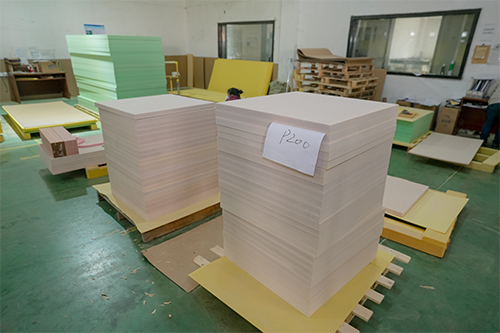

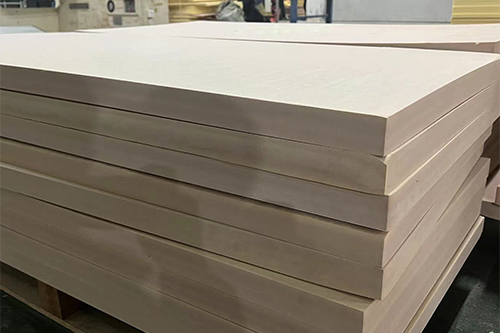

High-Density PVC Foam Core Manufacturing | UNION Autoclave Process

 Precision Quality Control of PVC Foam Boards | ±0.2mm Thickness Tolerance Global Logistics for PVC Foam Sheets | FCL/LCL Marine Grade Packaging



FAQs


What is your PVC foam core thickness and thickness tolerance?

Our PVC foam core regular thickness is from 1mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Which surface treatment do you have of PVC foam core?

Plain board; Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board; Scrim and punched board;

Hyperbolic board; Hyperbolic punching plate...

We could also support customized surface treatment.


How about your delivery time?

We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


How about your MOQ and samples?

No MOQ, we could provide A4 free samples.


Do you have other relevant materials?

Yes, we have all materials for infusion and autoclave process. Like peel ply, vacuum bagging film, flow mesh, infusion tube, spiral tube, sealant tape, vacuum hose, vacuum connector and many others.


What's the size of PVC foam core P200?

PVC foam core P200 has two regular sizes, Plain board size 1600*750mm, processed board size: 800*750mm. Board size could also be customized.


What's the maximum standard thickness of PVC foam core P200?

Our standard thickness range for PVC foam core P200 is 5mm–50mm, the maximum stock thickness is 50mm


What certifications does PVC foam core P200 have?

PVC foam core P20 has obtained international authoritative certifications such as ISO, DNV and IAF.
