UNION P130 PVC FOAM BOARD
You are here: Home » Products » PVC FOAM » UNION P130 PVC FOAM BOARD

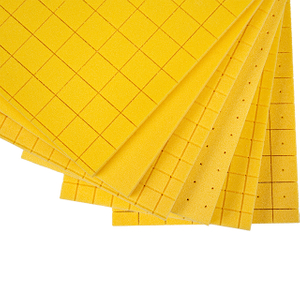

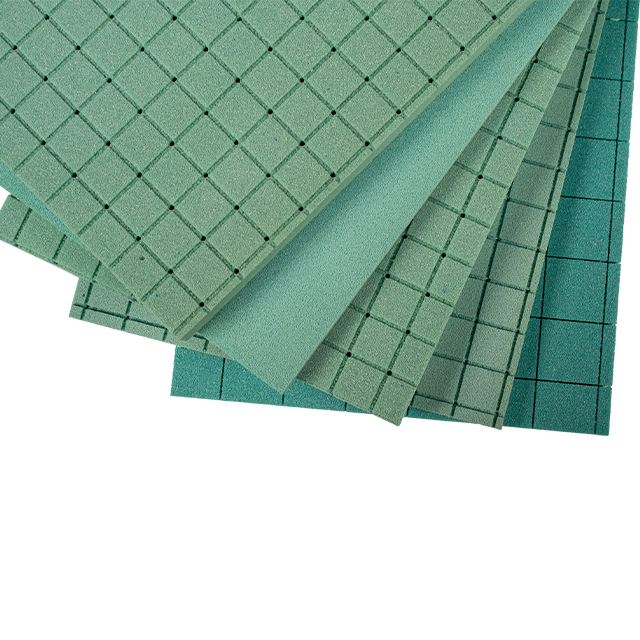

UNION P130 Grooved & Perforated PVC Foam Board | Marine Composite Core Material

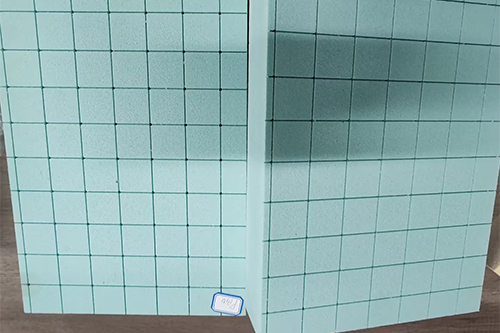

UNION P130 Grooved & Perforated PVC Foam Board | Marine Composite Core Material UNION P130 Grooved & Perforated PVC Foam Board | Marine Composite Core Material
UNION P130 Grooved PVC Foam Sheet | Automotive Sealing Gasket Material UNION P130 Grooved PVC Foam Sheet | Automotive Sealing Gasket Material
UNION P130 PVC Foam Core with Grooves | Water-Resistant Signage Substrate UNION P130 PVC Foam Core with Grooves | Water-Resistant Signage Substrate

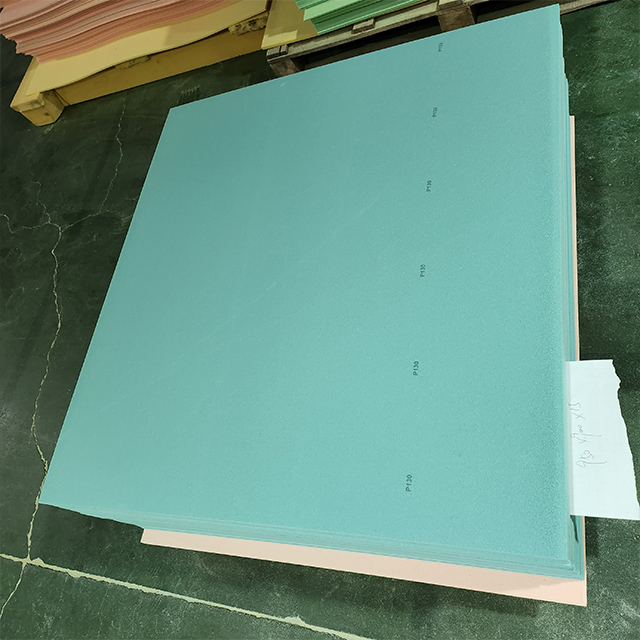

UNION P130 Glossy PVC Foam Board | Leather-like Surface Finish UNION P130 Glossy PVC Foam Board | Leather-like Surface Finish
UNION P130 PVC Foam Manufacturing Line | ISO 9001 Certified Facility UNION P130 PVC Foam Manufacturing Line | ISO 9001 Certified Facility

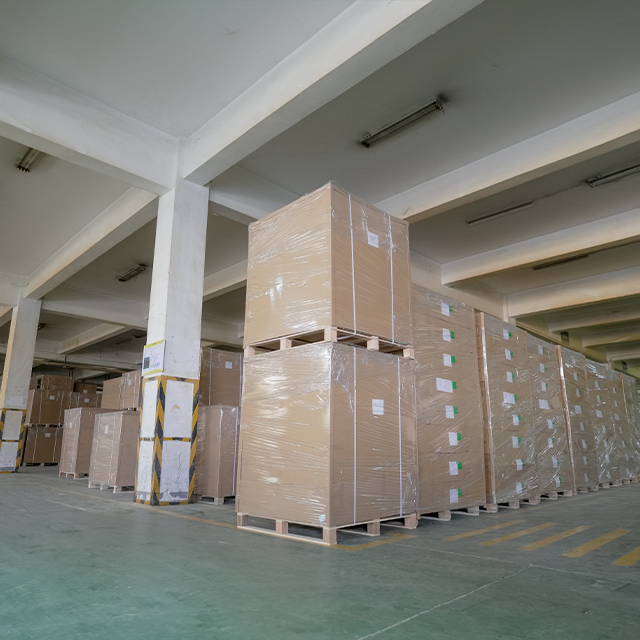

UNION P130 Foam Board Export Packaging | AEO-Certified Logistics UNION P130 Foam Board Export Packaging | AEO-Certified Logistics

loading

UNION P130 PVC FOAM BOARD

Key Technical Features
• Rigid expanded sheet with smooth gloss finish
• Density range: 120-150kg/m³ (ISO 845)
• 3MPa compressive strength (ISO 844)
• UL94 V-0 flame retardant certified

Industrial Applications
• Marine composite structures (DNV GL certified)
• Signage substrates & decorative panels
• Automotive sealing gaskets and tapes

This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

  • P-130

  • UNION

Availability:
Quantity:
Inquire Add to Basket
Product Description
Specifications
Product Certification
Production & Delivery
FAQS


UNION P130 PVC Foam Core Board Technical Description

Material Characteristics

• Lightweight cellular structure for easy fabrication
• 45-260kg/m³ adjustable density range
• 5-55mm thickness options (±0.2mm tolerance)
• Leather-like smooth surface finish

Performance Advantages

• Water-resistant timber alternative
• UL94 V-0 self-extinguishing properties
• 0.5% water absorption rate (marine grade)
• PSA adhesive backing compatible

Industrial Applications

• Signage substrates & decorative panels
• Automotive sealing gaskets & tapes
• Marine composites (DNV GL certified)
• Industrial noise reduction components

Technical Parameters

Compressive Strength: 3MPa (ISO 844)
Tensile Strength: 4.5MPa (ASTM C297)
Shock absorption & quick recovery
Moisture & wear resistance


UNION P130 PVC Foam in Sports Equipment | Lightweight Racket Core Material

Racket

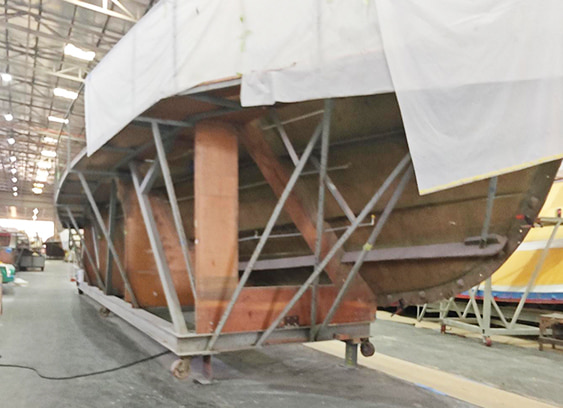

DNV GL Certified PVC Foam for Ship Hulls | UNION P130 Marine Composite

Shipbuilding

UNION P130 Yacht Deck Core Material | Moisture-Resistant PVC Foam

Yacht


Surface Technology

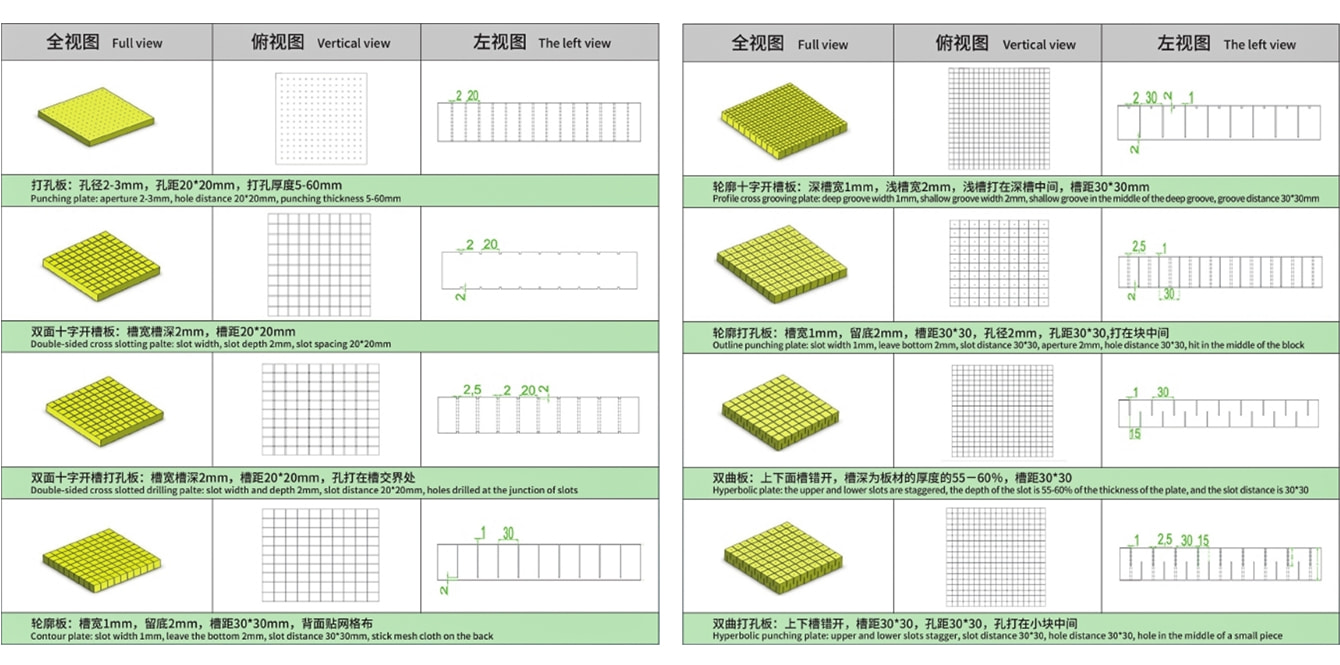

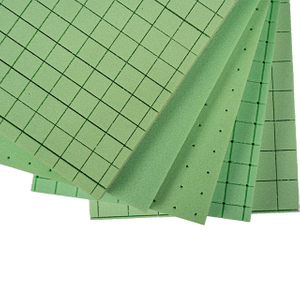

UNION P130 Surface Treatment Specifications | Grooved & Perforated PVC Foam Board


Product Specifications


Item

Test Standard

P130

Density (kg/m³)

AM-008/ISO845

Average

130

Minimum

120-150

Compressive Strength (Mpa)

AM-014/ISO844

Average

3

Minimum

2.6

Compressive Modulus (Mpa)

AM-014/ISO844

Average

170

Minimum

145

Shear Strength (Mpa)

ISO1922

Average

2.4

Minimum

2.1

Shear Mpdulus (Mpa)

ISO1922

Average

50

Minimum

40

Shear Strain (%)

ISO1922

Average

40

Minimum

30

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

4.5

Minimum

3.5

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

175

Minimum

135




Product Certification

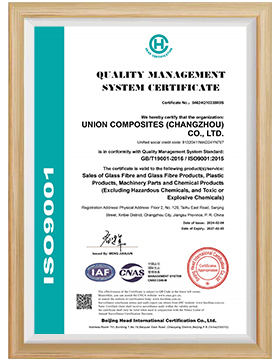

UNION P130 PVC Foam ISO 9001 Certification | Marine Composite Manufacturing Quality

ISO 9001

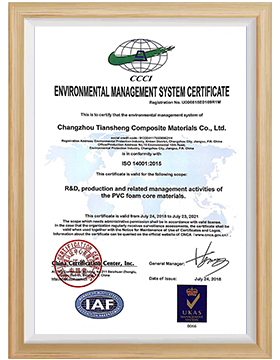

UNION P130 Eco-Friendly PVC Foam Certification | Automotive Material Compliance

ISO 14001

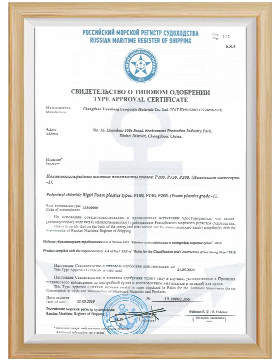

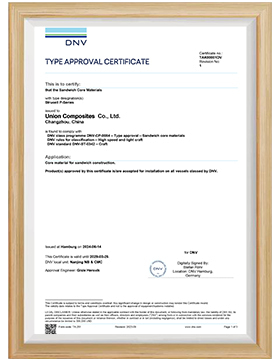

DNV GL Certified UNION P130 Foam Core | Shipbuilding Material Approval

RS Certification


UNION P130 DNV GL Certified Material | 250kg/m³ Marine Core Compliance

TAK00001DV

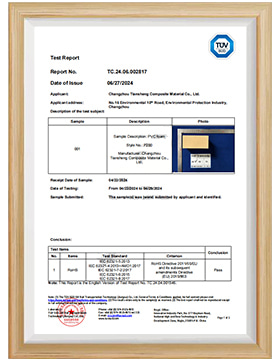

UNION P130 RoHS Compliant Automotive Foam | Heavy Metal-Free Material

RoHS

UNION P130 Fire-Resistant Foam Certification | UL94 V-0 Marine Safety Standard

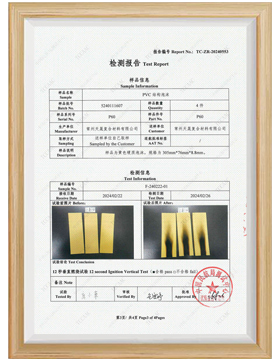

Flame Retardant Report

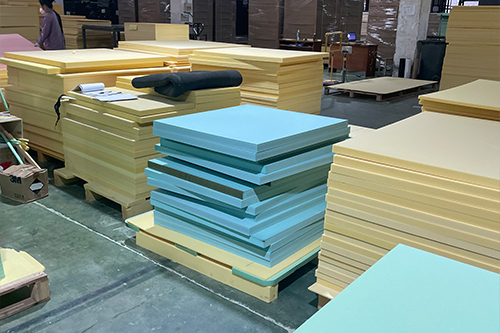

Production and Delivery


UNION P130 Perforated & Grooved PVC Foam Board | Marine Composite Surface Technology

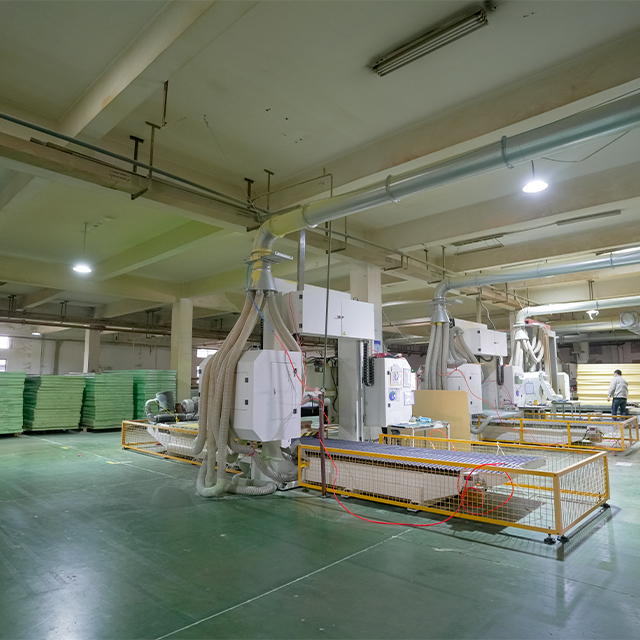

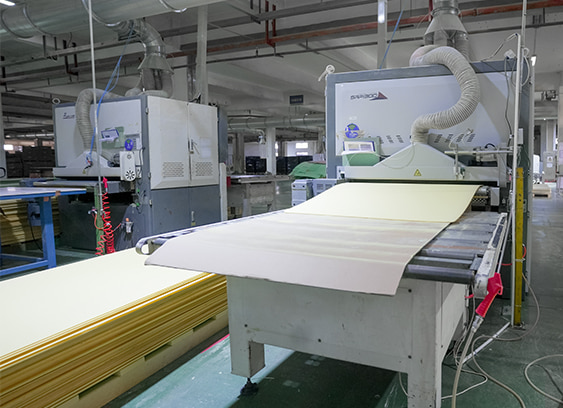

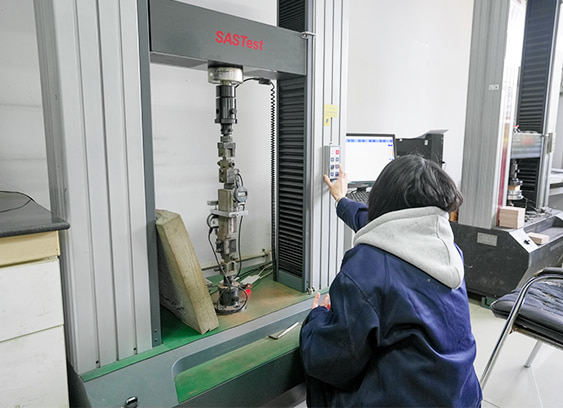

 UNION P130 PVC Foam Core Production Line | ISO 9001 Certified Manufacturing UNION P130 Foam Core Quality Inspection | 3-Stage Quality Assurance Process


FAQs


Q: What is your thickness and thickness tolerance?

A: Our regular thickness is from 2mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Q: Which surface treatment do you have of PVC foam?

A: Plain board;

Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board;

Scrim and punched board;

Hyperbolic board;

Hyperbolic punching plate...


Q: How about your delivery time?

A: We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


Q: How about your MOQ and samples?

A: No MOQ, we could provide A4 free samples.


Product Description
Specifications
Product Certification
Production & Delivery
FAQS

WHY CHOOSE UNION

Cost-Saving Premium Quality

UNION delivers TOP 3 global quality at 20-30% lower cost vs EU/US brands.

Core Expertise

Specializing in composite materials manufacturing with 15+ years of dedicated PVC foam innovation

Quality Assurance

Strict quality control delivers batch-to-batch consistency across all products

Tailored Solutions

Full customization capabilities to meet specific application requirements
CONTACT US NOW

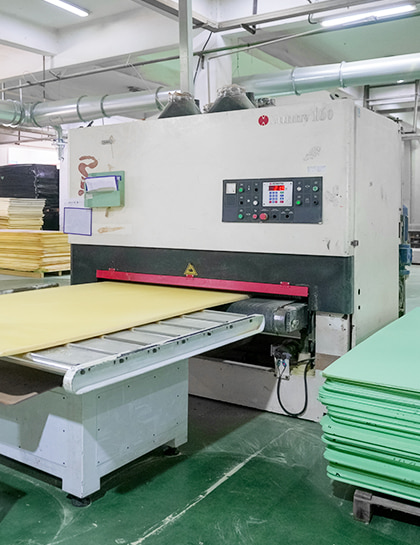

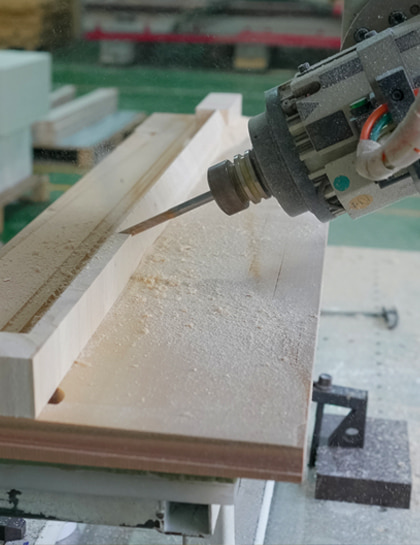

UNION PVC Foam Production Facility | ISO-Certified CNC Manufacturing Equipment
Closed-Cell PVC Foam Manufacturing Process | UNION Core Board Production Workflow

PRODUCTION & DELIVERY PROCESSE​​​​​​​

01 Order Confirmation

01
Order Confirmation
02 Production

02
Production
03 Quality Control

03
Quality Control
04 Packing

04
Packing
05 Delivery

05
Delivery
06 After-Sale Service

06
After-Sale Service

COME ON, DO NOT HESTITATE

A Passionate Team is ready to deliver you an outstanding PVC Foam project.

RELATED PRODUCTS

Heavy-duty StruCell® P250 PVC foam board (250kg/m³) for marine and aerospace applications
StruCell® P250 Structural PVC Foam Board
P200 PVC structural foam core in marine bulkhead construction
StruCell® P200 Structural PVC Foam Board
Structural grooved PVC foam board P130 (130kg/m³) for lightweight motorhome interiors
StruCell® P130 Structural PVC Foam Board
Heavy-duty StruCell® P100 structural PVC foam sheet (100kg/m³) for marine bulkheads and shipbuilding
StruCell® P100 Structural PVC Foam Board
DNV GL-certified StruCell® P80 structural PVC foam with grooved surface for marine hulls and camper van panels
StruCell® P80 Structural PVC Foam Board
High-strength StruCell® P60 structural PVC foam core board for marine applications
StruCell® P60 Structural PVC Foam Board
StruCell® P45 structural PVC foam core board with DNV GL certification, ideal for shipbuilding and refrigerated trucks
StruCell® P45 Structural PVC Foam Board
UNION P250 PVC Foam Core Board | 250kg/m³ High-Density Closed-Cell Foam
UNION P250 PVC FOAM BOARD
P200 PVC Foam Board with Precision Perforated Surface | 5mm Hole Pattern
UNION P200 PVC FOAM BOARD
UNION P100 PVC Foam Sheet with Grooves & Holes - Optimized for Resin Infusion
UNION P100 PVC FOAM BOARD

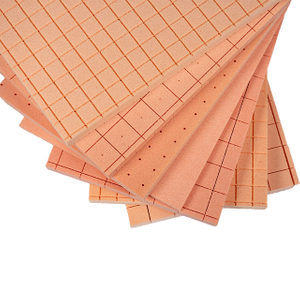

UNION P80 PVC Foam with grooves and perforations - Professional surface technology
