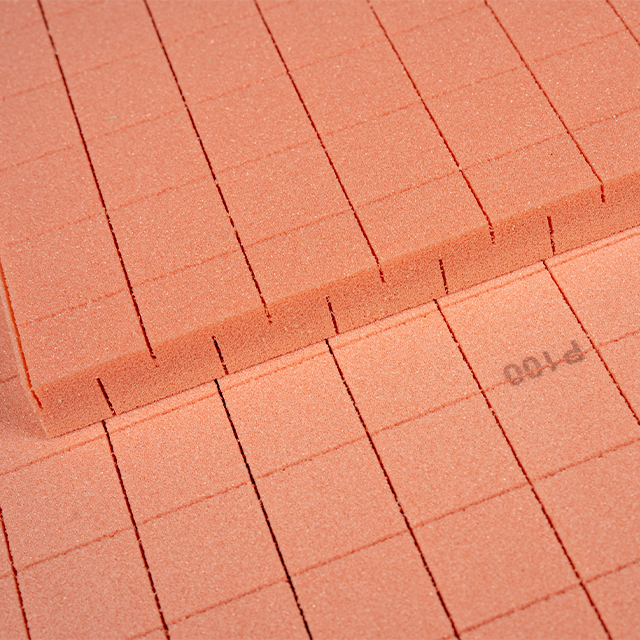

Custom Grooved P100 PVC Foam Core Board by UNION - Enhanced Bonding for Composites Custom Grooved P100 PVC Foam Core Board by UNION - Enhanced Bonding for Composites
Punched P100 PVC Foam Core Sheet - Lightweight & High Strength for Marine/Yacht Punched P100 PVC Foam Core Sheet - Lightweight & High Strength for Marine/Yacht
Curved P100 PVC Foam Core Sheet by UNION - Ideal for Complex Composite Moulding Curved P100 PVC Foam Core Sheet by UNION - Ideal for Complex Composite Moulding

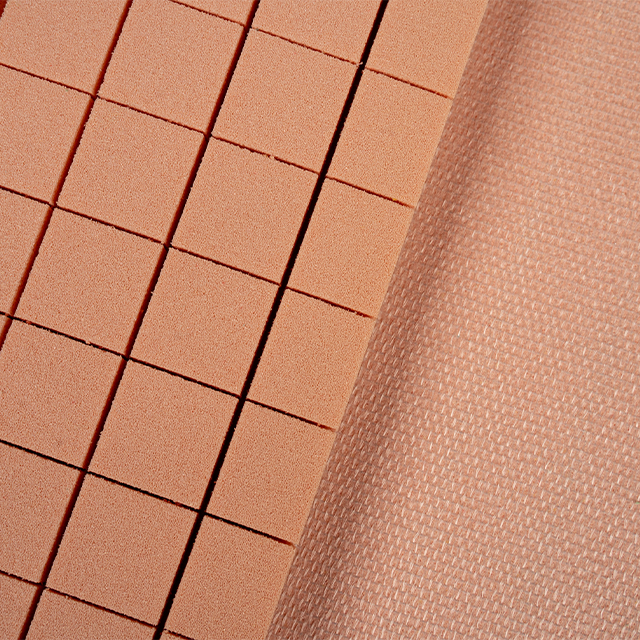

Fiberglass Scrim-Reinforced P100 PVC Foam Board - UNION Composite Solutions Fiberglass Scrim-Reinforced P100 PVC Foam Board - UNION Composite Solutions
UNION P100 PVC Foam Core Board Sheet - Plain Surface for Marine & Industrial Applications UNION P100 PVC Foam Core Board Sheet - Plain Surface for Marine & Industrial Applications

loading

UNION P100 PVC FOAM BOARD

UNION PVC Foam-P100 is a superior closed-cell lightweight foam core material manufactured by UNION COMPOSITES, a leading PVC Foam Core Board Sheet manufacturer and supplier in China. Ideal for marine applications, this cross-linked PVC foam offers high strength-to-weight ratio, excellent mechanical properties, and compatibility with resins for composite sandwich structures.
This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

  • P-100

  • UNION

Availability:
Quantity:
Inquire Add to Basket
Product Description
Specifications
Product Certification
Production & Delivery
FAQS

UNION PVC Foam Board - P100: High-Performance Core Material for Composite Applications


As a trusted PVC Foam Core Board Sheet manufacturer and supplier, UNION COMPOSITES delivers P100 PVC foam board, an all-purpose, closed-cell material designed for diverse industries. Suitable for closed moulding (RTM/infusion) and prepreg processing, this cross-linked foam provides:

✔ Superior Strength-to-Weight Ratio – Ideal for composite applications requiring stiffness and toughness.
✔ Fine Cell Structure – Ensures excellent bonding with resins and laminates.
✔ Wide Applications – Proven in wind energy, marine (boatbuilding, yachts), transport, and industrial sectors.


Key Features


✔ High impact strength & fatigue resistance
✔ Low resin absorption
✔ Fire-resistant (self-extinguishing)

✔ Consistent cross-section for reliable performance


UNION P100 PVC Foam is engineered for demanding environments, including turbine housings, nacelles, and marine structures. As a factory-direct supplier, we guarantee quality with ISO 9001/14001 certifications.



UNION P100 PVC Foam Core Sheet in Boatbuilding - Lightweight Marine Composite Material

Boatbuilding

Marine-Grade P100 PVC Foam Board - Waterproof & Durable Composite Core Material

Marine

Yacht Construction Using UNION P100 PVC Foam - Superior Strength-to-Weight Ratio

Yacht


Surface Technology

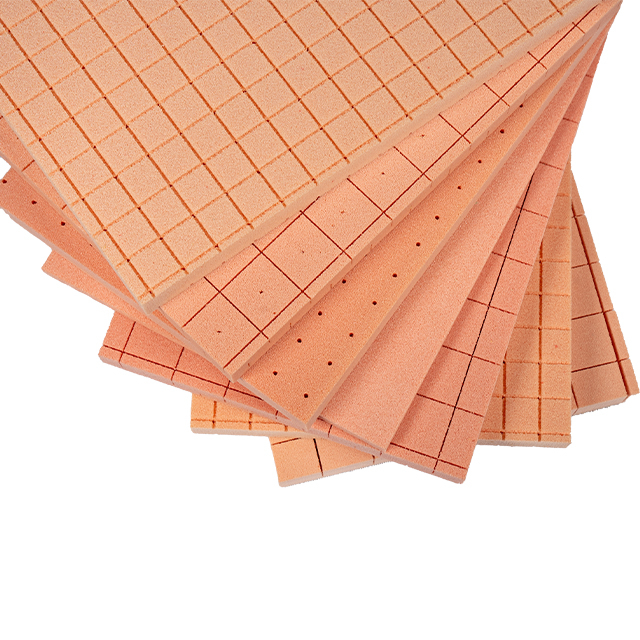

UNION P100 PVC Foam Surface Treatments - Grooved, Punched & Custom Options


Product Specifications


Item

Test Standard

P100

Density (kg/m³)

AM-008/ISO845

Average

100

Minimum

90-115

Compressive Strength (Mpa)

AM-014/ISO844

Average

2

Minimum

1.7

Compressive Modulus (Mpa)

AM-014/ISO844

Average

135

Minimum

115

Shear Strength (Mpa)

ISO1922

Average

1.65

Minimum

1.4

Shear Mpdulus (Mpa)

ISO1922

Average

35

Minimum

34

Shear Strain (%)

ISO1922

Average

35

Minimum

25

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

3.5

Minimum

2.5

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

145

Minimum

110




Product Certification


UNION PVC Foam P100 ISO 9001 Certified - Quality Management System for Composite Materials

ISO 9001

UNION P100 PVC Foam Sheet ISO 14001 Certification - Environmentally Compliant Production

ISO 14001

RS Certification for UNION P100 PVC Foam - Marine & Industrial Compliance

RS Certification


DNV Certified UNION P100 PVC Foam - Verified for Marine & Offshore Applications

TAK00001DV

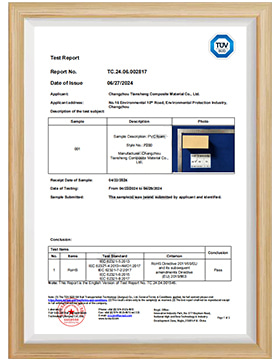

RoHS Compliance Report for UNION P100 PVC Foam - Hazardous Substance Free

RoHS

Flame Retardant Test Report - UNION P100 PVC Foam Sheet Self-Extinguishing Properties

Flame Retardant Report

Production and Delivery

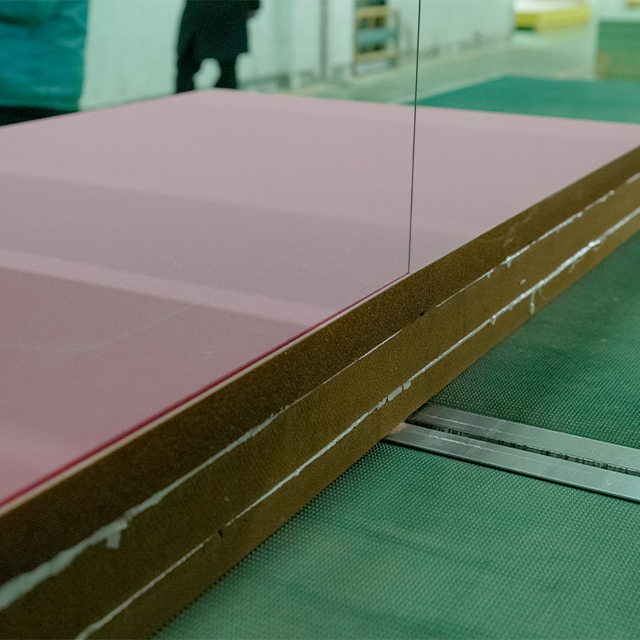

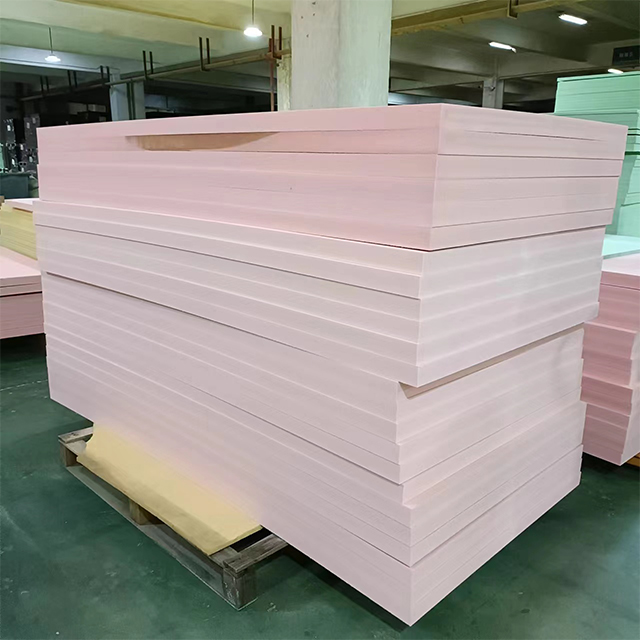

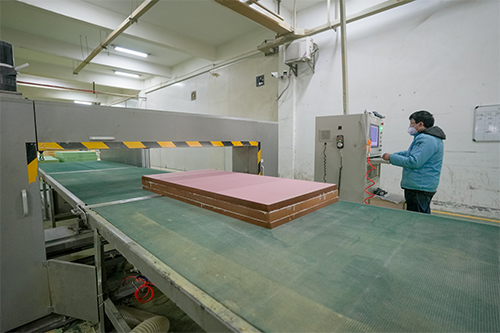

UNION P100 PVC Foam Core Board manufacturing process - China factory production line

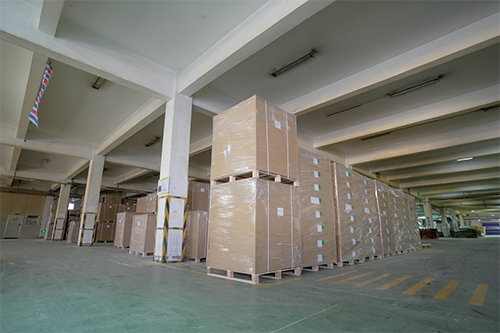

Quality checking of UNION P100 PVC Foam Board - Precision measurement in factory Professional packaging of UNION P100 PVC Foam Sheets - Ready for global shipping


FAQs



Q: What is your thickness and thickness tolerance?

A: Our regular thickness is from 2mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Q: Which surface treatment do you have of PVC foam?

A: Plain board;

Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board;

Scrim and punched board;

Hyperbolic board;

Hyperbolic punching plate...


Q: How about your delivery time?

A: We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


Q: How about your MOQ and samples?

A: No MOQ, we could provide A4 free samples.
