StruCell® P130 Structural PVC Foam Core
You are here: Home » Products » PVC FOAM » StruCell® P130 Structural PVC Foam Core

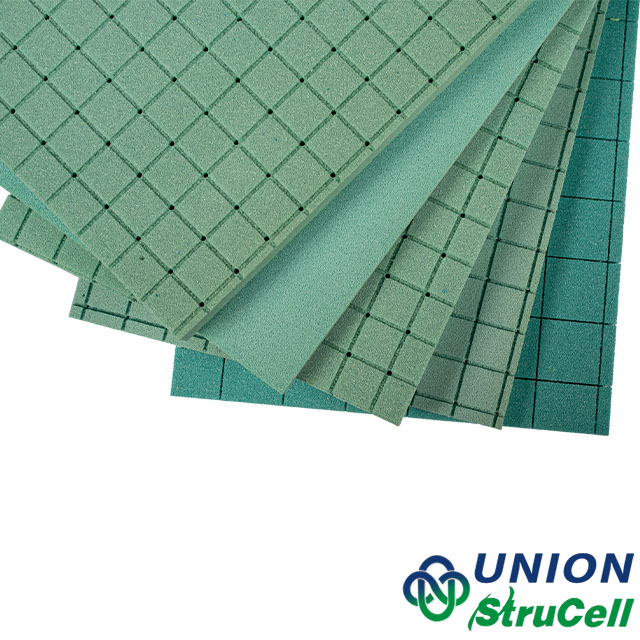

Structural grooved PVC foam core P130 (130kg/m³) for lightweight motorhome interiors
Structural grooved PVC foam core P130 (130kg/m³) for lightweight motorhome interiors Structural grooved PVC foam core P130 (130kg/m³) for lightweight motorhome interiors

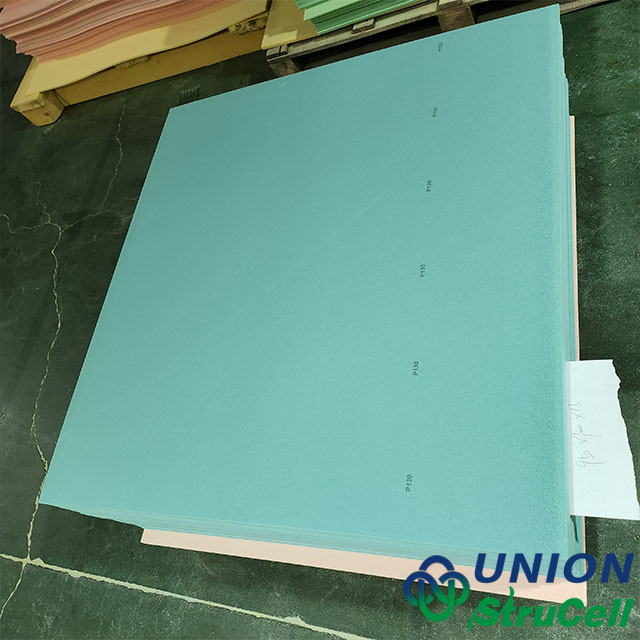

Premium StruCell® P130 structural PVC foam core with hardened gloss surface for aircraft cabins Premium StruCell® P130 structural PVC foam core with hardened gloss surface for aircraft cabins
DNV GL-certified P130 PVC foam core being installed in yacht cabin walls DNV GL-certified P130 PVC foam core being installed in yacht cabin walls

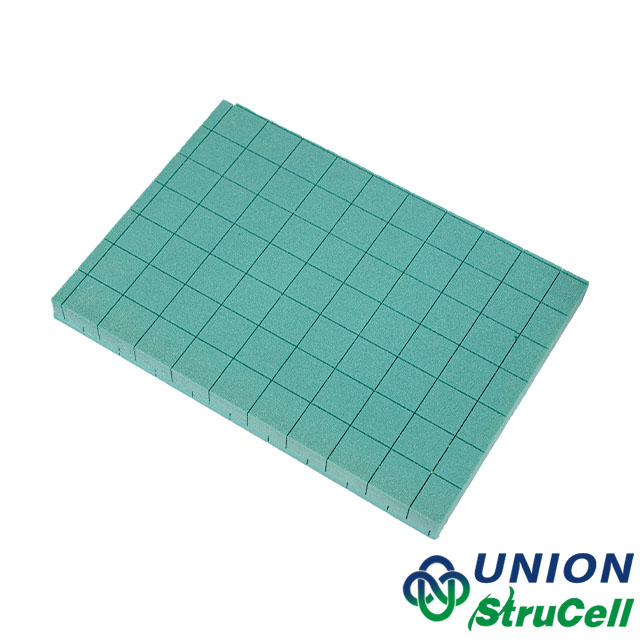

CNC-cut P130 structural foam core with smooth finish for car dashboards CNC-cut P130 structural foam core with smooth finish for car dashboards

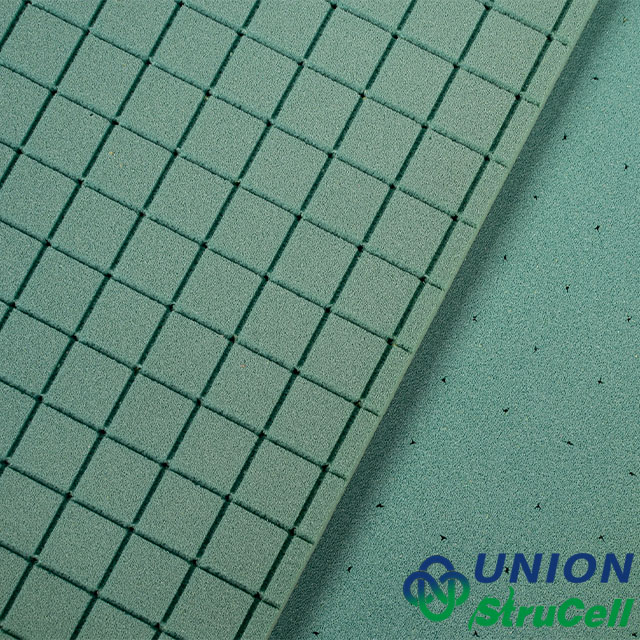

Comparison of grooved vs perforated P130 PVC foam core for marine/auto use Comparison of grooved vs perforated P130 PVC foam core for marine/auto use
StruCell® P130 PVC Foam Core StruCell® P130 PVC Foam Core

loading

StruCell® P130 Structural PVC Foam Core

Structural Core for Marine & Automotive Applications
Premium Finish Structural Foam Solution
StruCell® P130 is a gloss structural PVC foam core featuring a unique hardened surface finish, engineered for applications requiring both strength and aesthetic appeal:
  • Marine Interiors: Luxury yacht cabins, deckhead panels
  • Automotive: Premium vehicle interior trim components
  • RV/Campervan: High-end wall and ceiling systems

  • P-130

  • StruCell

Availability:
Quantity:
Inquire Add to Basket

StruCell Rigid PVC Foam Core pvc structural foam PVC Foam Manufacturer Marine Structural Foam Core PVC Foam Marine Grade PVC Foam Closed cell PVC Foam PVC Foam Core PVC Foam Board
Product Description
Specifications
Product Certification
Production & Delivery
FAQS

StruCell® P130 PVC Structural Foam Core Description

Key Features & Benefits

✅ Premium Aesthetic Finish

  • Gloss-hardened surface - Ready for high-end paint or laminate applications

  • Wood-grain texture option - Ideal for timber replacement

✅ Structural Performance

  • 130kg/m³ density - Optimal balance of strength and weight

  • Impact-resistant - Withstands 25% greater force than standard PVC foam

✅ Marine-Grade Durability

  • Zero water absorption - Perfect for humid environments

  • UV-stable - Maintains color and finish in sunlight

✅ Manufacturing Advantages

  • Precision CNC machinable - For grooved or perforated patterns

  • Low resin absorption - Saves material costs in composite layups



Technical Specifications


Property StruCell® P130 Test Standard
Density 130kg/m³ (±3%) ISO 845
Thickness Range 5-55mm (±0.2mm) ASTM D1622
Surface Finish Gloss Hardened (both sides) Visual
Fire Resistance UL94 V-0 -




Surface Treatment Options

  • Precision grooves - For enhanced resin bonding in marine composites

  • Decorative perforations - Architectural patterns for interior design



Why Choose StruCell® P130 PVC Foam Core?

✔ Luxury Finish Standard - Preferred by superyacht builders
✔ Wood Alternative - 100% waterproof, no maintenance required
✔ Fast Turnaround - Custom sizes within 7 working days


UNION P130 PVC Foam in Sports Equipment | Lightweight Racket Core Material

Racket

DNV GL Certified PVC Foam for Ship Hulls | UNION P130 Marine Composite

Shipbuilding

UNION P130 Yacht Deck Core Material | Moisture-Resistant PVC Foam

Yacht


Surface Technology

UNION P130 Surface Treatment Specifications | Grooved & Perforated PVC Foam Board


Product Specifications


Item

Test Standard

P130

Density (kg/m³)

AM-008/ISO845

Average

130

Minimum

120-150

Compressive Strength (Mpa)

AM-014/ISO844

Average

3

Minimum

2.6

Compressive Modulus (Mpa)

AM-014/ISO844

Average

170

Minimum

145

Shear Strength (Mpa)

ISO1922

Average

2.4

Minimum

2.1

Shear Mpdulus (Mpa)

ISO1922

Average

50

Minimum

40

Shear Strain (%)

ISO1922

Average

40

Minimum

30

Tensile Strength (Mpa)

AM-104/ASTMC297

Average

4.5

Minimum

3.5

Tensile Modulus (Mpa)

AM-104/ASTMC297

Average

175

Minimum

135




Product Certification


UNION P130 PVC Foam ISO 9001 Certification | Marine Composite Manufacturing Quality

ISO 9001

UNION P130 Eco-Friendly PVC Foam Certification | Automotive Material Compliance

ISO 14001

DNV GL Certified UNION P130 Foam Core | Shipbuilding Material Approval

RS Certification


UNION P130 DNV GL Certified Material | 250kg/m³ Marine Core Compliance

TAK00001DV

UNION P130 RoHS Compliant Automotive Foam | Heavy Metal-Free Material

RoHS

UNION P130 Fire-Resistant Foam Certification | UL94 V-0 Marine Safety Standard

Flame Retardant Report

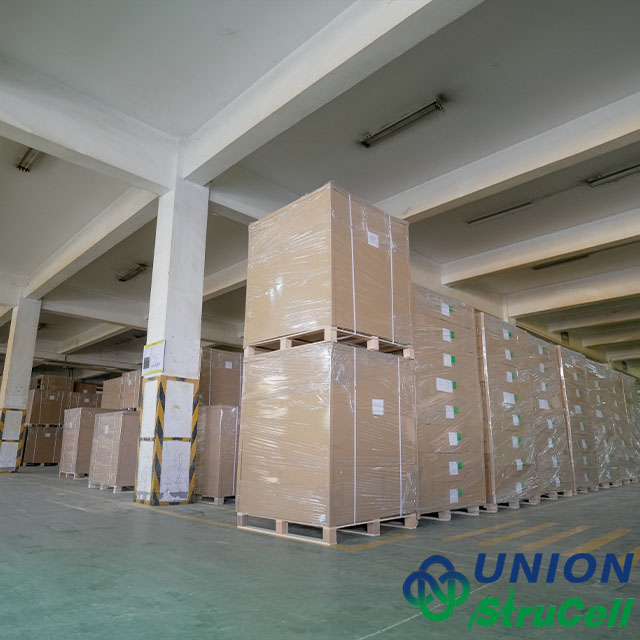

Production and Delivery


UNION P130 Perforated & Grooved PVC Foam Board | Marine Composite Surface Technology

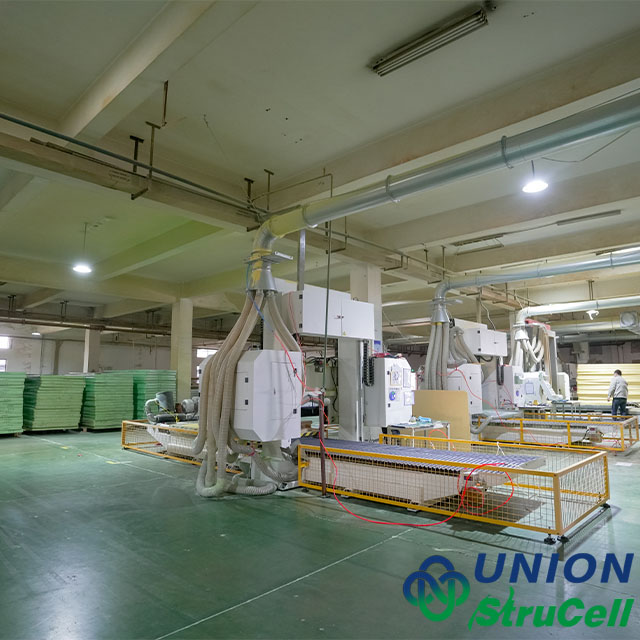

 UNION P130 PVC Foam Core Production Line | ISO 9001 Certified Manufacturing UNION P130 Foam Core Quality Inspection | 3-Stage Quality Assurance Process



FAQs


What is your PVC foam core thickness and thickness tolerance?

Our PVC foam core regular thickness is from 1mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.


Which surface treatment do you have of PVC foam core?

Plain board;

Punched board;

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board;

Scrim and punched board;

Hyperbolic board;

Hyperbolic punching plate...


How about your delivery time?

We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.


How about your MOQ and samples?

No MOQ, we could provide A4 free samples.


What is your size of PVC foam core P130?

PVC foam core P130 has two regular sizes, Plain board size 1900*900mm, processed board size: 950*900mm. Board size could also be customized.
