StruCell® P100 Structural PVC Foam Core

Product Specifications

Item	Test Standard		P100
Density (kg/m³)	AM-008/ISO845	Average	100
		Minimum	90-115
Compressive Strength (Mpa)	AM-014/ISO844	Average	2
		Minimum	1.7
Compressive Modulus (Mpa)	AM-014/ISO844	Average	135
		Minimum	115
Shear Strength (Mpa)	ISO1922	Average	1.65
		Minimum	1.4
Shear Mpdulus (Mpa)	ISO1922	Average	35
		Minimum	34
Shear Strain (%)	ISO1922	Average	35
		Minimum	25
Tensile Strength (Mpa)	AM-104/ASTMC297	Average	3.5
		Minimum	2.5
Tensile Modulus (Mpa)	AM-104/ASTMC297	Average	145
		Minimum	110

Product Certification

Production and Delivery

FAQs

What is your PVC foam core thickness and thickness tolerance?

Our PVC foam core regular thickness is from 1mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.

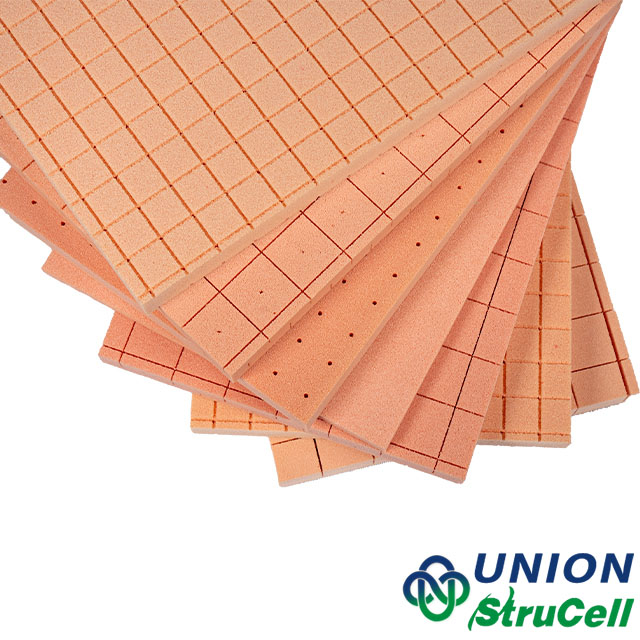

Which surface treatment do you have of PVC foam core?

Plain board;

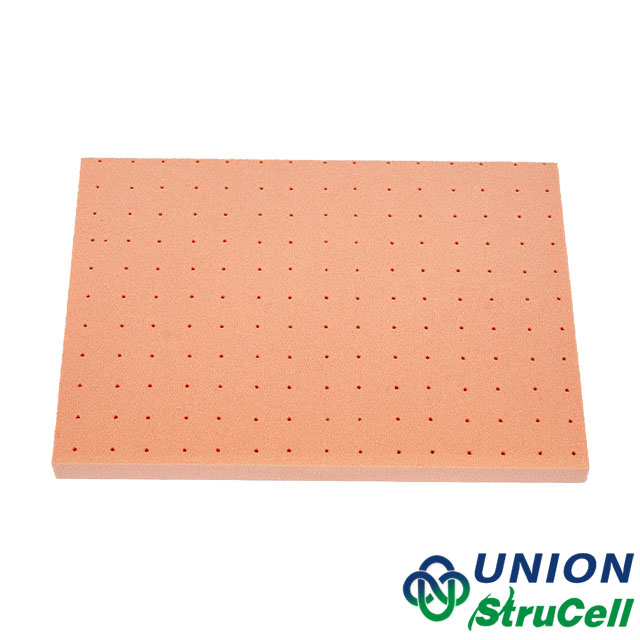

Punched board;

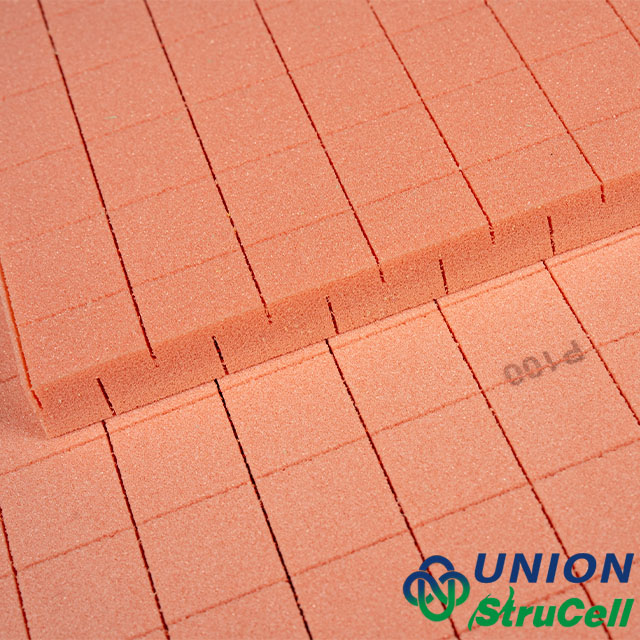

One side or two sides grooved board;

One side or two sides grooved and punched board;

Scrim board;

Scrim and punched board;

Hyperbolic board;

Hyperbolic punching plate...

How about your delivery time?

We provide fast delivery: small orders: 5-7 days; full container: 15-20 days.

How about your MOQ and samples?

No MOQ, we could provide A4 free samples.

What are the key advantages of PVC foam core P100 compared with other density grades?

It offers balanced performance. Higher strength than P80, lighter weight and lower cost than P130, with the best overall cost performance.

What are the typical applications of PVC foam core P100?

It is widely used for sandwich structures in marine, wind energy, rail transit, UAV and refrigeration industries.

Does PVC foam core P100 have good water resistance and marine certification?

Its closed-cell structure ensures low water absorption and good seawater resistance. It is approved by DNV.

Which surface treatment do you have of PVC foam core P100?

Plain board; Punched board; One side or two sides grooved board; One side or two sides grooved and punched board; Scrim board; Scrim and punched board; Hyperbolic board; Hyperbolic punching plate...

Which composite manufacturing processes suit PVC foam core P100?

Compatible with vacuum infusion, RTM, pre-preg and OOA processes.

What types of resin are compatible with PVC foam core P100?

Compatible with epoxy, polyester and vinyl ester resins.

Is PVC foam core P100 fire-retardant?

It is inherently fire-retardant with UL94 V-0 rating and self-extinguishing.

What is your thickness and thickness tolerance?

Our regular thickness is from 2mm~70mm, and we also support customized thickness. Thickness tolerance is ±0.2mm.

What is the water absorption of PVC foam core P100?

Low water absorption due to closed-cell structure, less than 1.5% within 24 hours.

What is the operating temperature range of PVC foam core P100?

It maintains stable performance between -200℃ and 80℃.

How is the long-term service stability of PVC foam core P100?

Good fatigue resistance and anti-aging performance with minor property degradation under cyclic load.

Does the product comply with environmental regulations?

It complies with RoHS standard and contains no hazardous substances.

Can you provide samples? What is the minimum order quantity?

Free samples (A4 size) are available, and there is no strict MOQ for regular orders.

Why is low water absorption critical for marine applications of PVC foam core P100?

It prevents weight gain, delamination and performance degradation in seawater, ensuring long-term structural reliability.
