CNC Custom Machining for PVC Foam Parts – Precision. Speed. Value.


At UNION, we specialize in manufacturing high-precision PVC foam CNC parts and custom special shaped PVC foam components tailored to your exact design requirements. From complex geometries to functional prototypes and high-volume production runs, we deliver accuracy, performance, and consistency—all under one roof.

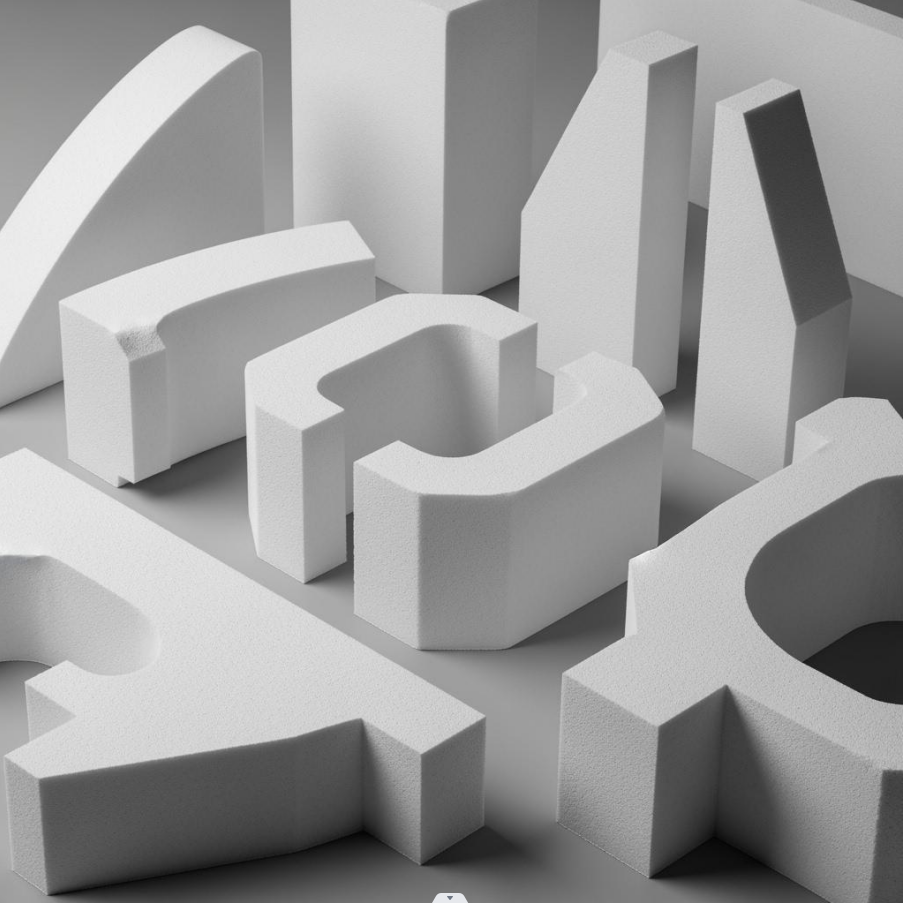

CNC Custom PVC Foam Special shaped Parts

Custom PVC Foam Parts We Manufacture

Close-up image of a complex, precision CNC-machined PVC foam part for aerospace or marine applications, showcasing smooth edges and detailed contours.

PVC Foam CNC Parts

Precision-machined components for marine, automotive, aerospace, and industrial applications.

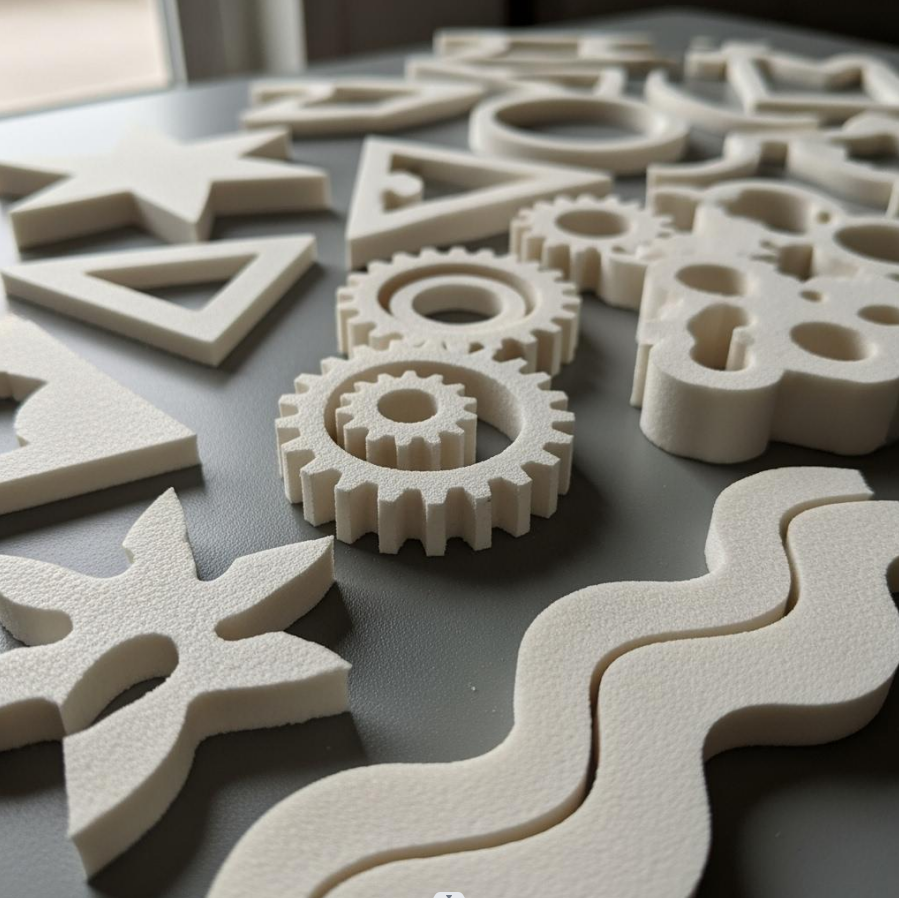

Image of various uniquely shaped and profiled rigid PVC foam parts with custom angles and curves, designed for structural and aesthetic applications.

PVC Foam Special Shaped Parts

Custom contours, angles, and profiles for structural and aesthetic uses.

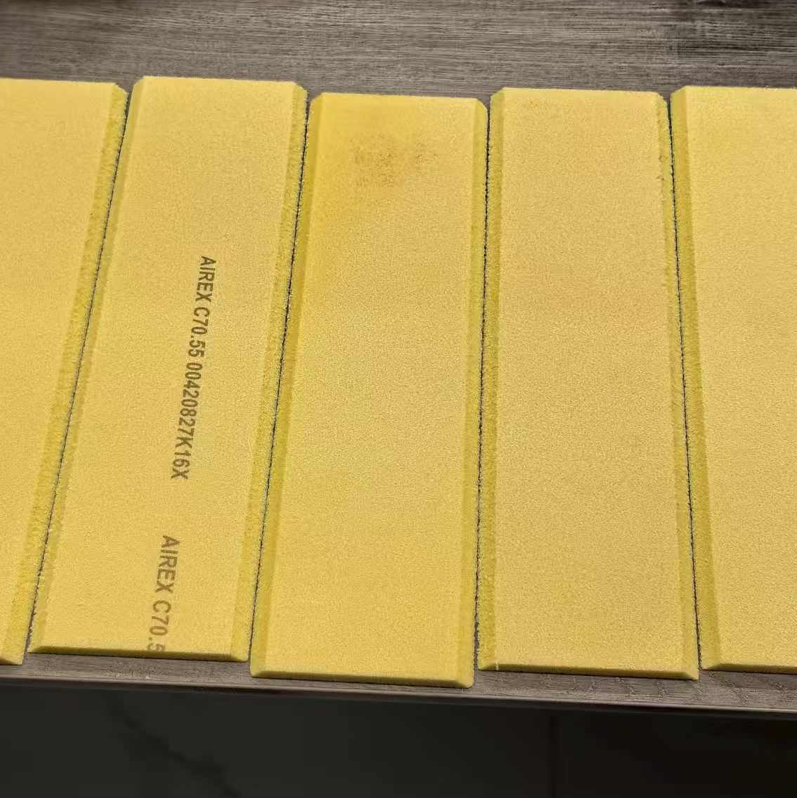

Image of multiple consistently cut PVC foam strips with tight tolerances, stacked neatly, ideal for use as seals, edges, or reinforcement strips.

PVC Foam Strips

Consistently cut strips with tight tolerances, ideal for sealing, edging, and reinforcement. Used in swimming pool.

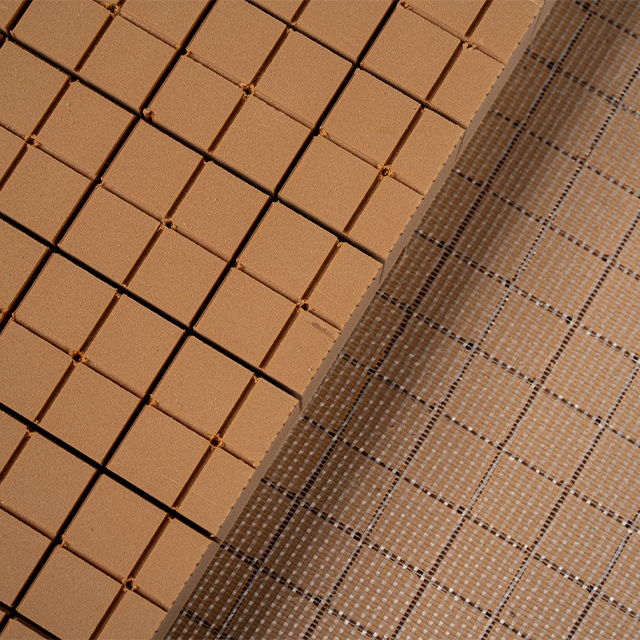

Image of a large, rigid PVC foam block and panel with a grooved and scrim-backed surface treatment, ready for CNC cutting into composite core materials.

PVC Foam Blocks & Panels

CNC-cut to specification with grooves, perforations, scrim, or hyperbolic surfaces.

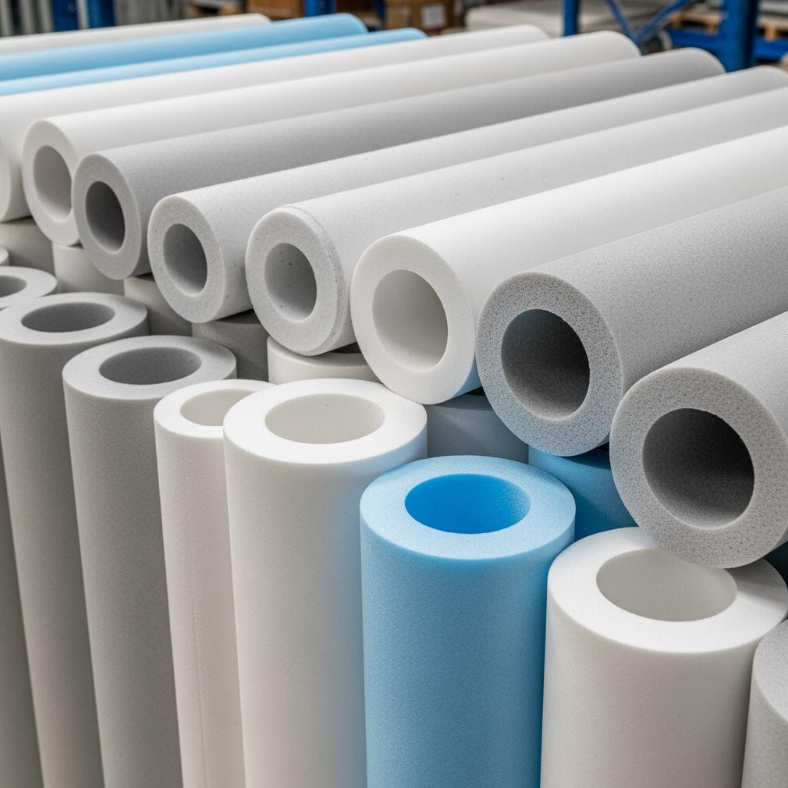

Image of precision-machined rigid PVC foam tubes and insulation sleeves for buoyancy, thermal protection, and conduit applications in marine and industrial systems.

PVC Foam Tube & Insulation Sleeve

Precisely machined cylindrical forms and protective sleeves, used for thermal insulation, buoyancy elements, and structural padding in marine, automotive, and industrial systems.
Image of custom-die-cut PVC foam gaskets and seals providing environmental sealing, vibration damping, and compression resistance for automotive and marine assembly.

PVC Foam Gaskets & Seals

Custom-cut gaskets and sealing components with consistent compression resistance, suitable for environmental sealing, vibration damping, and assembly integration across industries.

Why Choose UNION for Your PVC Foam Machining Needs?

  • One-Stop Closed-Loop Production


    We control the entire process—from raw material formulation and foaming to CNC machining and finishing. This allows us to adjust material density, rigidity, and cell structure to optimize machinability and final part performance.

  • Reduced Resin Consumption & Assembly Time


    Our precision CNC-machined custom PVC foam parts are designed to fit perfectly within composite structures, significantly reducing resin usage during infusion or lamination processes. By providing near-net-shape components with tight tolerances (±0.2mm), we minimize gap filling and material waste. This leads to direct cost savings for you—especially important given the high cost of resins—and shortens installation time thanks to simplified assembly and reduced manual adjustments.

  • Cost & Time Efficiency


    By eliminating middlemen and reducing logistics, we offer faster lead times and 20–30% lower cost compared to outsourced machining solutions. Full production cycles are streamlined under one certified ISO facility.

  • Expert Technical Team


    Our engineers and machinists have extensive experience in interpreting 2D drawings and 3D models with minimal back-and-forth. We ensure design intent is accurately translated into machined parts with tight tolerances (±0.2mm) and superior surface quality.

  • No MOQ & Free Samples


    We support both prototype and production orders—no minimum order quantity. Request free A4-sized samples to validate fit, finish, and performance.

  • Full Customization Support


    · Multiple surface treatments: grooved, perforated, scrim-backed, hyperbolic.
    · Wide thickness range: 2mm–70mm (±0.2mm tolerance).
    · DNV GL-certified foam grades: P45 to P250 densities.
    · Secondary processing: bonding, laminating, edge-sealing.

Applications of Our CNC PVC Foam Parts

  • MARINE
    MARINE
  • AUTOMOTIVE
    AUTOMOTIVE
  • WIND ENERGY
    WIND ENERGY
  • AVIATION
    AVIATION
  • SPORT
    SPORT
  • DRONE
    DRONE

UNION-StruCell® PVC Foam: Optimized for Precision CNC Machining

Select the ideal density for your application, balancing machinability, strength, and weight.
  • StruCell P300 high-density PVC foam core board, 300 kg/m3 structural foam core with grooved surface
    StruCell® P300 Structural PVC Foam Core
    Model: P-300
    Brief:
    StruCell® P300 is the highest-density grade in the StruCell® structural PVC foam core series, at 290-330 kg/m³. Technical Data Sheet average values: compressive strength 7.6 MPa, tensile strength 11 MPa, shear strength 5.9 MPa, compressive modulus 450 MPa, shear modulus 120 MPa. It is a closed-cell, cross-linked PVC foam core developed for high-load sandwich structures where higher bearing stress and fastener pull-out resistance are required. Supplied as plain boards of 1300 × 610 mm / 1300 × 620 mm and grooved, perforated or contour boards of 650 × 620 mm, in 15/16, 22, 30, 33 and 40 mm thickness. DNV·GL, UL94 V-0 and RoHS certified, made under an ISO 9001 quality system; free A4 samples available.
  • StruCell® P45 structural PVC foam core board with DNV GL certification, ideal for shipbuilding and refrigerated trucks
    StruCell® P45 Structural PVC Foam Core
    Model: P-45
    Brief:
    StruCell® P45 is a structural PVC foam core manufactured through controlled expansion of cross-linked polyvinyl chloride (PVC). As a DNV GL-certified closed-cell polymer foam, it delivers exceptional thermal insulation and mechanical stability for: Marine: Hull cores for LNG carriers & yachts
    Transport: Refrigerated truck panels & camper van insulation
    Industrial: Low-temperature equipment enclosures

  • High-strength StruCell® P60 structural PVC foam core board for marine applications
    StruCell® P60 Structural PVC Foam Core
    Model: P-60
    Brief:
    High-Performance Core Material for Marine & Wind Energy Applications

    StruCell® P60 is a structural PVC foam core engineered for demanding applications in: Marine: Hulls, decks, and bulkheads for boats and yachts
    Wind Energy: Blade cores and nacelle components
    Transport: RV and camper van structural panels
  • DNV GL-certified StruCell® P80 structural PVC foam core with grooved surface for marine hulls and camper van panels
    StruCell® P80 Structural PVC Foam Core
    Model: P-80
    Brief:
    Premium Closed-Cell PVC Foam Core for Demanding Applications Ultra-Durable Marine & Outdoor Core Material StruCell® P80 is a high-density structural PVC foam core engineered for superior performance in marine and outdoor environments. With 80kg/m³ density and advanced cross-linking technology, it delivers unmatched durability for: Marine Construction: Hulls, decks, and bulkheads
    Yacht & Boatbuilding: Lightweight yet rigid core material
    RV & Camper Manufacturing: Weather-resistant panels
  • Heavy-duty StruCell® P100 structural PVC foam core (100kg/m³) for marine bulkheads and shipbuilding
    StruCell® P100 Structural PVC Foam Core
    Model: P-100
    Brief:

    High-Density Marine-Grade Core Material
    Premium Closed-Cell PVC Foam Core for Demanding Marine Applications
    StruCell® P100 is a high-performance structural PVC foam core engineered for critical marine and industrial applications. With 100kg/m³ density and advanced cross-linking technology, it delivers exceptional strength for:
    Marine Construction: Hulls, decks, and bulkheads requiring maximum durability
    Yacht & Boatbuilding: Structural cores for high-performance vessels
    Industrial Composites: Heavy-duty sandwich panels
  • Structural grooved PVC foam core P130 (130kg/m³) for lightweight motorhome interiors
    StruCell® P130 Structural PVC Foam Core
    Model: P-130
    Brief:
    Structural Core for Marine & Automotive Applications
    Premium Finish Structural Foam Solution
    StruCell® P130 is a gloss structural PVC foam core featuring a unique hardened surface finish, engineered for applications requiring both strength and aesthetic appeal:
    Marine Interiors: Luxury yacht cabins, deckhead panels
    Automotive: Premium vehicle interior trim components
    RV/Campervan: High-end wall and ceiling systems
  • P200 PVC structural foam core in marine bulkhead construction
    StruCell® P200 Structural PVC Foam Core
    Model: P-200
    Brief:
    Rigid Structural Core for Marine & Automotive Manufacturing
    Premium Polymerized Vinyl Chloride Foam
    StruCell® P200 is a rigid structural PVC foam core engineered for demanding infusion and autoclave processes in: Marine Construction: High-load hull sections and structural decks
    Automotive: Lightweight yet rigid components for performance vehicles
    Aerospace: Composite tooling and structural parts
  • Heavy-duty StruCell® P250 PVC foam core (250kg/m³) for marine and aerospace applications
    StruCell® P250 Structural PVC Foam Core
    Model: P-250
    Brief:
    Marine Structural Core for Demanding Applications
    Premium Closed-Cell Rigid PVC Foam Core Solution
    StruCell® P250 represents the pinnacle of structural PVC foam core technology, delivering unmatched performance for:
    Marine Construction: Hulls, decks, and bulkheads requiring maximum durability
    High-Performance Vehicles: Lightweight structural components
    Industrial Tooling: Precision molds and fixtures
  • Front view of StruCell Rigicore P recycled PVC foam core board.
    StruCell® Rigicore P Recycled Structural PVC Foam Core
    Model: Rigicore P
    Brief:
    StruCell® Rigicore P is an innovative, eco-friendly composite structural foam core material. It is manufactured through a specialized process that utilizes crushed structural PVC foam scraps and recycled materials, bonded with a high-performance foaming adhesive.

    Integrating lightweight properties, reliable mechanical strength, thermal insulation, shock absorption, and fire resistance, Rigicore P offers excellent comprehensive performance. With its stable chemical properties and environmentally friendly manufacturing process that minimizes ecological impact, it is an ideal sustainable alternative for the construction and architectural industries.
  • P45 PVC Foam Core Closed-Cell Structure | 48kg/m³ Density Core Material
    UNION P45 PVC FOAM CORE
    Model: P-45
    Brief:
    As a leading PVC foam core board manufacturer, UNION delivers P45 closed-cell polymer foam core engineered for cryogenic applications. This cross-linked foam core excels in:

    ✅ Superior Thermal Retention: 0.035 W/m·K thermal conductivity for refrigerated systems
    ✅ Structural Durability: 48kg/m³ density with 0.6MPa compressive strength
    ✅ Certified Performance: DNV GL TAK00001DV certified for LNG containment systems

    Key Applications
    Cold Chain Logistics
    • Refrigerated truck wall panels  • -25°C continuous operation stability
    Energy Transportation
    • LNG carrier insulation layers  • 25+ year marine corrosion resistance

    This PVC Foam Core uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.
  • Fiberglass scrim reinforced P60 PVC foam with textured surface
    UNION PVC FOAM - P60
    Model: P-60
    Brief:
    UNION PVC Foam-P60 is a durable closed-cell PVC foam core board manufactured by UNION COMPOSITES, a leading PVC Foam Core Board Sheet manufacturer and supplier in China. This high-performance material is specifically engineered for wind energy applications (blades & nacelles), boatbuilding, and RV manufacturing, offering exceptional strength-to-weight ratio and weather resistance.
    This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.
  • UNION P80 PVC Foam with grooves and perforations - Professional surface technology
    UNION P80 PVC FOAM BOARD
    Model: P-80
    Brief:
    UNION PVC Foam Board P80 is a premium closed-cell, cross-linked polymer foam core board, manufactured by China's leading PVC Foam Core Board Sheet manufacturer and supplier - UNION COMPOSITES. Specially engineered for marine applications and sports equipment, this high-performance material delivers exceptional strength-to-weight ratio and durability.
    This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.
  • UNION P100 PVC Foam Sheet with Grooves & Holes - Optimized for Resin Infusion
    UNION P100 PVC FOAM BOARD
    Model: P-100
    Brief:
    UNION PVC Foam-P100 is a superior closed-cell lightweight foam core material manufactured by UNION COMPOSITES, a leading PVC Foam Core Board Sheet manufacturer and supplier in China. Ideal for marine applications, this cross-linked PVC foam offers high strength-to-weight ratio, excellent mechanical properties, and compatibility with resins for composite sandwich structures.
    This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.
  • UNION P130 Grooved & Perforated PVC Foam Board | Marine Composite Core Material
    UNION P130 PVC FOAM BOARD
    Model: P-130
    Brief:
    Key Technical Features
    • Rigid expanded sheet with smooth gloss finish
    • Density range: 120-150kg/m³ (ISO 845)
    • 3MPa compressive strength (ISO 844)
    • UL94 V-0 flame retardant certified

    Industrial Applications
    • Marine composite structures (DNV GL certified)
    • Signage substrates & decorative panels
    • Automotive sealing gaskets and tapes

    This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.
  • P200 PVC Foam Core with Precision Perforated Surface | 5mm Hole Pattern
    UNION P200 PVC FOAM CORE
    Model: P-200
    Brief:
    Engineered for precision composite manufacturing, the UNION P200 PVC Foam Core is a 200kg/m³ density closed-cell foam core specifically formulated for autoclave processing and vacuum infusion applications. Key features include:

    ✅ Aerospace-Grade Material: DNV GL-certified for marine structures & aircraft interiors
    ✅ Advanced Polymer Matrix: Chlorine-enhanced formulation for chemical resistance
    ✅ Process-Optimized: 0.2mm thickness tolerance for mold tooling precision
    ✅ Multi-Industry Application: Wind turbine blades, ship bulkheads, automotive tooling

    This PVC Foam Core uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.
  • UNION P250 PVC Foam Core Board | 250kg/m³ High-Density Closed-Cell Foam
    UNION P250 PVC FOAM BOARD
    Model: P-250
    Brief:
    UNION P250 PVC (polyvinyl chloride) foam board is one of the most superior closed cell foam material.

    Technical Specifications
    • Density: 250kg/m³
    • Compressive Strength: 6.2MPa
    • Tensile Strength: 9.2MPa

    Certified Performance
    • DNV GL TAK00001DV Certification
    • UL94 V-0 Fire Resistance
    • RoHS Compliant Material

    Core Applications
    • Marine Composite Structures (Triple Boatbuilding Certification)
    • Aerospace Tooling Components
    • High-Performance Automotive Parts

    This PVC Foam uses StruCell® original core materials and is provided by UNION with a localized adaptation solution.

Trusted by Global Leaders for PVC Foam CNC Components & Structural Solutions

We are a trusted partner to industry pioneers worldwide, delivering precision CNC-machined PVC foam parts and rigid structural foam cores across diverse sectors. Our custom solutions are specified by shipyards, automotive OEMs, aerospace suppliers, and renewable energy contractors across 30+ countries for critical applications including:
Marine & Composites: Kayaks, yachts, catamarans, and swimming pools
Ground Transportation: High-speed rail interiors, campervans, refrigerated trucks
Wind Energy: Blade core sections and nacelle components
Leisure & Sports: Surfboards, paddles, and lightweight athletic equipment
UAV & Technology: Drone frames and protective casings

ABOUT UNION

Let's Make Your Design a Reality

Upload your drawings or specifications for a fast-turnquote. Our team reviews each request within 12 hours and provides design-for-manufacturing feedback where applicable.

FAQ About Our PVC Foam Machining Services

  • Q: What file formats do you accept for CNC quoting?
    More+
    A: We accept .DXF, .DWG, .STEP, .IGS, and .STP files, as well as PDF drawings with critical dimensions.
  • Q: Can you machine other materials besides PVC foam?
    More+
    A: Yes. We also work with PET foam, PU foam, PP honeycomb, and composite sandwich panels.
  • Q: Is surface finishing included?
    More+
    A: Yes. We offer finishing options including milling, sanding, grooving, and sealing based on application needs.
  • Q: What's the lead time for custom CNC parts?
    More+
    A: Sample orders: 5–7 days. Production batches: 10–15 days. Expedited service is available.
