FLOW MESH

Resin flow mesh is used in vacuum infusion systems to ease the resin flow.

  • UNION

Availability:
Quantity:
Inquire Add to Basket

Product Description
Specifications
Product Certification

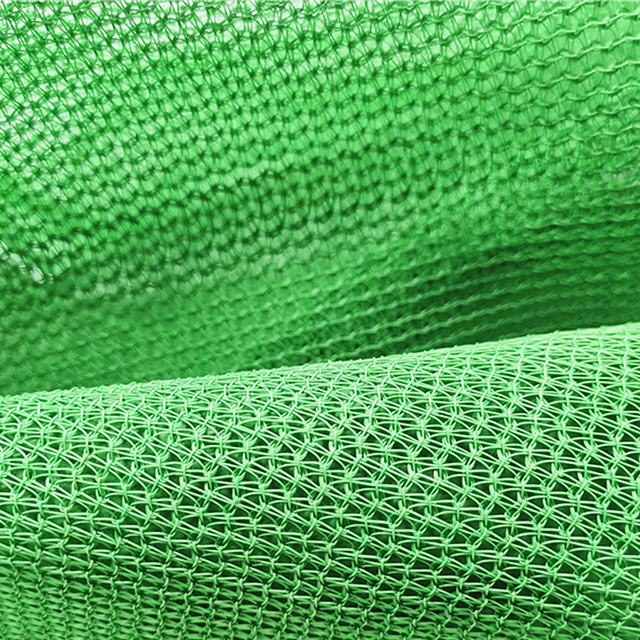

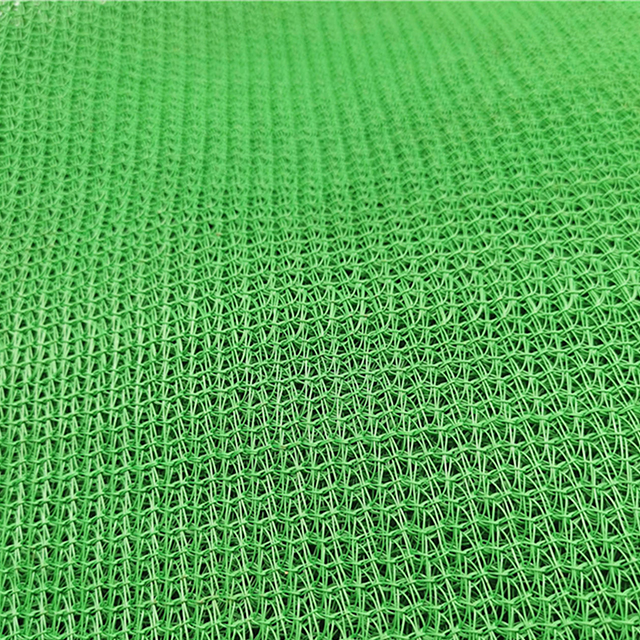

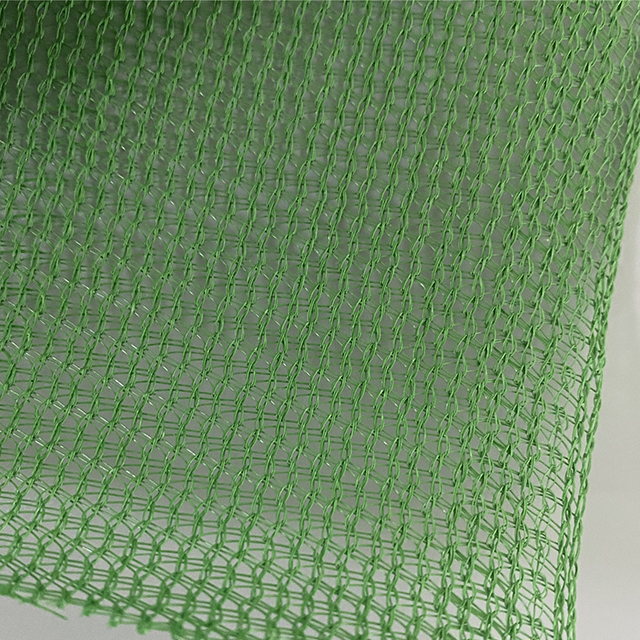

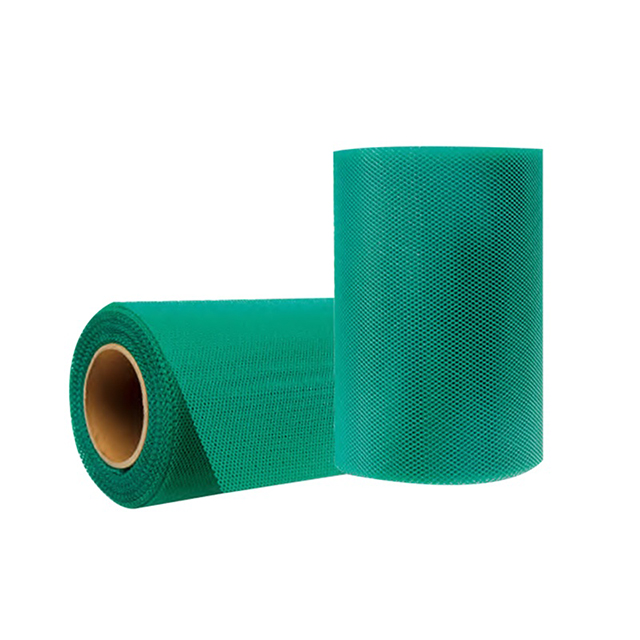

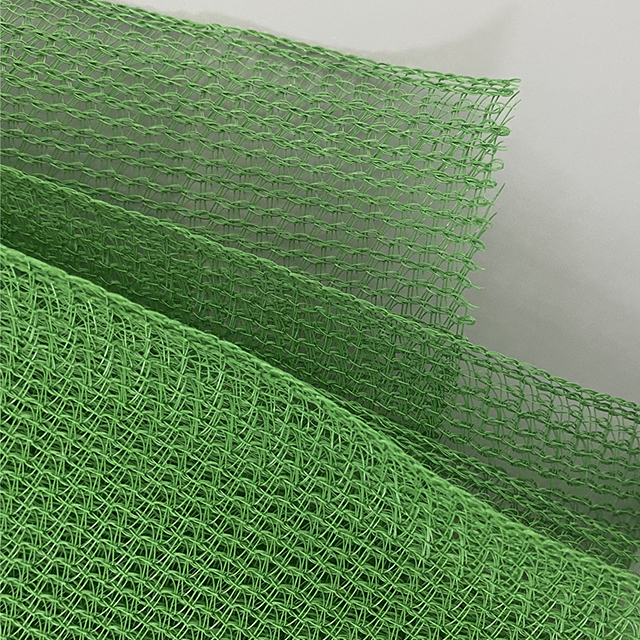

Resin flow mesh is used in vacuum infusion systems to ease the resin flow. It can also be used selectively to increase resin flow to certain areas of the mold and increase the speed with which the project infuses. We have two types of flow meshes: one is extruded and the other is woven. They are suitable for different infusion conditions.


Features:



7

Application

8

Application

9

Application


Product Specifications:


Items

UT-230

UT-160

UT-120

Test Method

Material Type

Polyolefin (PE)

Polyolefin (PE)

Polyolefin (PE)

--------

Elongation at break

≥500%

≥500%

≥500%

ASTM D 882

Tensile Strength

≥35MPa

≥35MPa

≥35MPa

ASTM D 882

Maximum using temperature

120℃

120℃

120℃

--------

Density(g/㎡)

230

160

120

--------

Width

≤2m

≤2m

≤2m

--------

Standard Length/roll

100m

100m

100m

--------

Color

Green/Black

Green/Blue

Green

--------




ISO 9001

ISO 9001

ISO 14001

ISO 14001

RS certification

RS Certification


TAK00001DV

TAK00001DV

certification 05 (1)

RoHS

Flame retardant report

Flame Retardant Report
